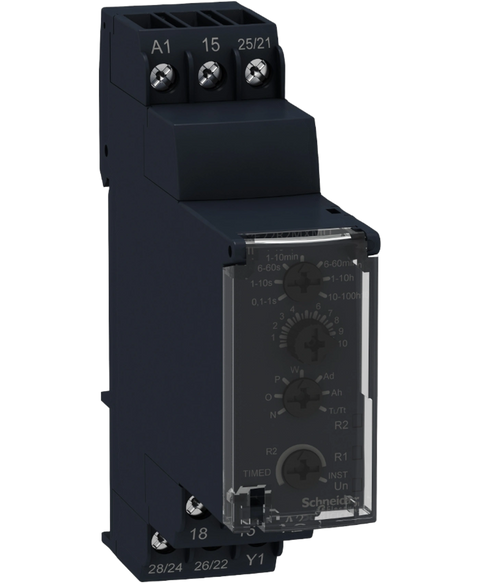

Schneider Electric RE22R2MMW
Time delay rly, spdt, 0.1s-100hour, 240v; contact voltage V DC:-; time min:0.1s; time max:100h; product range:zelio re22 series; contact configuration:spdt; contact current:8A; relay mounting:DIN rail; contact voltage V AC:250v rohs compliant: yes
This Schneider Electric RE22R2MMW is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers > Zelio time range and is referenced internally as PartLogic SKU PL26905730536.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$355.79
(inc. GST)
In Stock
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Device short name | RE22 |
| nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact | 1 C/O timed or instantaneous contact |
| Time delay type | Power on-delay | On-delay and off-delay | Interval | Off-delay | Symmetrical flashing |
| Time delay range | 0.1...1 s | 6...60 s | 1...10 h | 1...10 min | 1...10 s | 10...100 h | 6...60 min |
| Control type | Rotary knob front panel |
| [Us] rated supply voltage | 12...240 V AC/DC |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 2 x 1.5 mm² with cable end | Screw terminals, 2 x 2.5 mm² without cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Control signal pulse width | 30 ms | 100 ms under load |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA at 240 V AC |
| Power consumption in W | 1.5 W at 240 V DC |
| breaking capacity | 2000 VA |
| Minimum switching current | 10 mA at 5 V |
| Maximum switching current | 8 A |
| Maximum switching voltage | 250 V |
| Electrical durability | 100000 cycles for resistive load, 8 A at 250 V, AC |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 | 5 kV conforming to IEC 61812-1 |
| Power on delay | 100 ms |
| Safety reliability data | B10d = 230000 | MTTFd = 251.1 years |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED green (flashing) for timing in progress | LED green (steady) for power ON | LED yellow for relay energised |
| Function available | A- Power on-delay relay-2 C/O | Ac- On-delay and off-delay relay w/ control signal-2 C/O | At- Power on-delay relay w/ pause/summation (Y1)-2 C/O | B- Single interval relay w/ control signal-2 C/O | Bw- Double interval relay w/ control signal-2 C/O | C- Off-delay relay w/ control signal-2 C/O | D- Symmetrical flashing relay (starting pulse-off)-2 C/O | Di- Symmetrical flashing relay (starting pulse-on)-2 C/O | H- Interval relay-2 C/O | Ht- Interval relay w/ pause/summation (Y1)-2 C/O |
| Width | 22.5 mm |
| Net weight | 0.093 kg |
| Number of functions | 10 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 |
| Standards | IEC 61812-1 | IEC 61000-6-2 | IEC 61000-6-1 | IEC 61000-6-4 | IEC 61000-6-3 |
| Directives | 2004/108/EC - electromagnetic compatibility | 2006/95/EC - low voltage directive |
| Product certifications | CSA | CE | cULus | GL | RCM | CCC | EAC |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -30…60 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529 | IP20 terminal block: conforming to IEC 60529 | IP40 front face: conforming to IEC 60529 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 %, without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 | Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 | Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 | Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 | Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 | Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 | Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 | Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 | Conducted and radiated emissions class B conforming to EN 55022 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 8.600 cm |
| Package 1 Length | 9.900 cm |
| Package 1 Weight | 108.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.800 kg |
