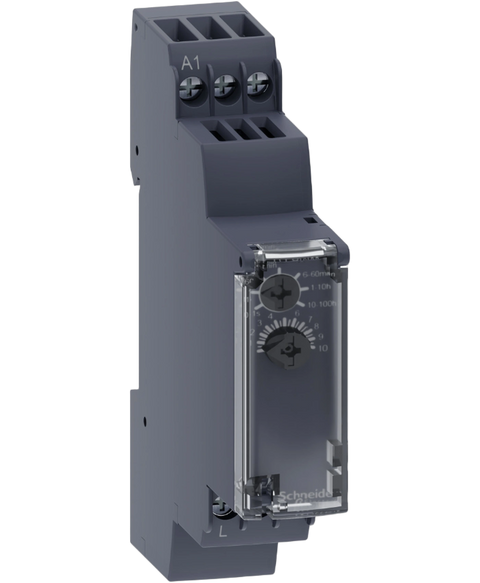

Schneider Electric RE17LAMW
Modular timing relay, on-delay, 0.7A, 24-240VAC,dc, 1 second - 100 hour, 1 co, solid state output, 50,60Hz, -20 to 60 degrees c, IP20,IP40,IP50, successor for re11lamw
This Schneider Electric RE17LAMW is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Timers > Zelio time range and is referenced internally as PartLogic SKU PL26902610106.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$140.32
(inc. GST)
In Stock
| Range of product | Harmony Timer Relays |
| Discrete output type | Solid state |
| Width | 17.5 mm |
| Product or component type | Modular timing relay |
| Component name | RE17L |
| Time delay range | 1...10 s | 10...100 h | 6...60 s | 0.1...1 s | 1...10 min | 6...60 min | 1...10 h |
| nominal output current | 0.7 A |
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| control signal pulse width | 0.05 s typical |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| power on delay | 100 ms |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Power on-delay - A- Power on-delay relay |
| Reset time | 350 ms on de-energisation typical |
| On-load factor | 100 % |
| Power consumption in VA | 0…3 VA at 240 V AC |
| Maximum power consumption in W | 1.5 W at 240 V DC |
| Breaking capacity | 0.5 A AC/DC conforming to UL | 0.7 A AC/DC at 20 °C |
| operating frequency | 10 Hz |
| Maximum output current | 20 A |
| minimum switching current | 10 mA |
| Maximum leakage current | 5 mA |
| Maximum switching voltage | 250 V AC/DC |
| Maximum voltage drop | <4 V 3-wire | <8 V 2-wire |
| Electrical durability | 100000000 cycles |
| Marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 353.8 years | B10d = 320000 |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Function available | A- Power on-delay relay-1 solid state output |
| Net weight | 0.068 kg |
| Functionality | On-delay timing |
| Number of functions | 1 |
| Compatibility code | RE17 |
| Immunity to microbreaks | 20 ms |
| Derating factor | 5 mA/°C |
| Standards | 2004/108/EC | IEC 61000-6-1 | 2006/95/EC | IEC 61000-6-3 | IEC 61000-6-2 | IEC 61812-1 | IEC 61000-6-4 |
| Product certifications | GL | CSA | cULus |
| Ambient air temperature for storage | -30…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP50 (front panel) conforming to IEC 60529 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 | Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 | Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 | Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 | Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 | Conducted and radiated emissions: , class B, conforming to EN 55022 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.600 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 70.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.270 kg |
