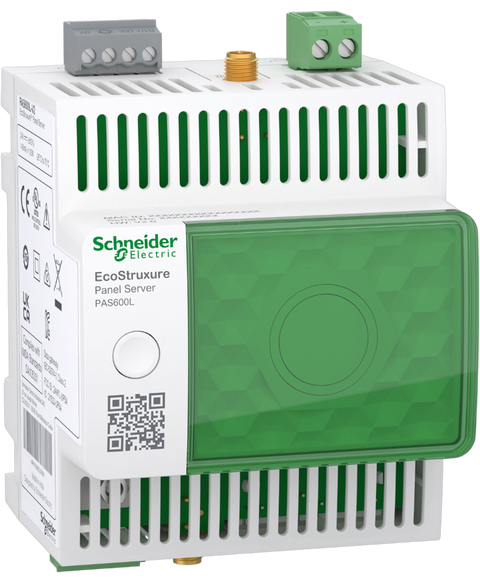

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric PAS600L
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC
This Schneider Electric PAS600L is supplied brand new by PartLogic for control cabinets, automation systems, machine power distribution, industrial electronics and maintenance applications. It forms part of our Industrial automation > Power supplies range and is referenced internally as PartLogic SKU PL26917806492.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,250.28
(inc. GST)
In Stock
| Range | EcoStruxure |
| Product name | Panel Server Universal |
| Product or component type | Gateway |
| Device short name | PAS600L |
| Device application | Gateway |
| [Us] rated supply voltage | 24 V DC |
| Communication gateway | Ethernet TCP/IP to wireless devices | Ethernet/serial |
| Product compatibility | Wireless access point |
| Communication port protocol | Modbus TCP | DHCP | HTTPS | NTP/SNTP | IPv4 | IPv6 | TCP/IP |
| Communication port support | 2 RJ45: ETHERNET | Screw terminal block: RS485 |
| Number of server device(s) | 32 Modbus RTU product(s) | 128 Modbus TCP/IP product(s) | 40 wireless (IEEE 802.15.4) product(s) - mixed | 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number of devices | 64 Modbus TCP/IP |
| Number of inputs | 2 digital |
| Connections - terminals | Discrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) | Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) | Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Discrete I/O: 0.25 N.m | Power supply: 0.6 N.m | Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm | Communication: 7 mm | Discrete I/O: 7 mm |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE | cULus | CB | RCM | UKCA | FCC | IC | DNV Marine | ANSI RF | IACS E10 |
| Standards | IEC 61010 | IEC 61010-1 | IEC 61010-2-201 | UL 61010 | UL 61010-1 | UL 61010-2-201 | EN 61010-1 | EN 61010-2-201 | CAN/CSA C22.2 No. 61010-1-12 | CAN/CSA C22.2 No. 61010-2-201 | IEC 62974-1 | IEC 61326-1 | EN 61326-1 | ETSI EN 301 489-1 | ETSI EN 301 489-17 | EN 301-893 | EN 55032 | CISPR 11 | ETSI EN 300 328 | IEEE 802.15.4 | IEEE 802.11a/b/g/n | IEEE 802.3 af/at | FCC CFR 47 part 15 class A | EN 62311 | IEC 62311 | ANSI C63.10 | IEC 60945 | EN 62974-1 | DNVGL-GC-0339 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Net weight | 181 g |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function available | Embedded web page for configuration and upgrade | Diagnosis capabilities | Diagnostic report | Diagnostics on communication | Energy management | With integrated web server | Firmware update | Backup/restore configuration | Configurable event |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network | Switched Ethernet network |
| Web services | HTTPS server | SFTP publication (CSV / JSON) | HTTPS publication (CSV / JSON) |
| Communication service | Device Profile for Web Services (DPWS) | Modbus TCP client | Modbus TCP server | SNTP client | DHCP client | RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop | EcoStruxure Power Commission Mobile (through Wi-Fi Access point) | EcoStruxure Power Commission web (for third party device integration) | Web page |
| Realtime clock | With RTC-battery set | With user calibration |
| Time synchronisation protocol | NTP | SNTP |
| Range compatibility | EcoStruxure Facility Expert | EcoStruxure Building Operation | EcoStruxure Power Operation | EcoStruxure Power Monitoring Expert | EcoStruxure Asset Advisor | EcoStruxure Energy Hub | EcoStruxure Resource Advisor | Third party SCADA |
| Communication iinterface | Modbus and wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 (front face) | IP20 (casing) |
| Ambient air temperature for operation | -25…70 °C at < 2000 m | -25…60 °C at 2000...4000 m |
| Derating factor | With temperature derating of -1 °C per 200 m 4000...5000 m |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Operating altitude | < 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 11.300 cm |
| Package 1 Weight | 245.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.232 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 216 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 69.552 kg |
