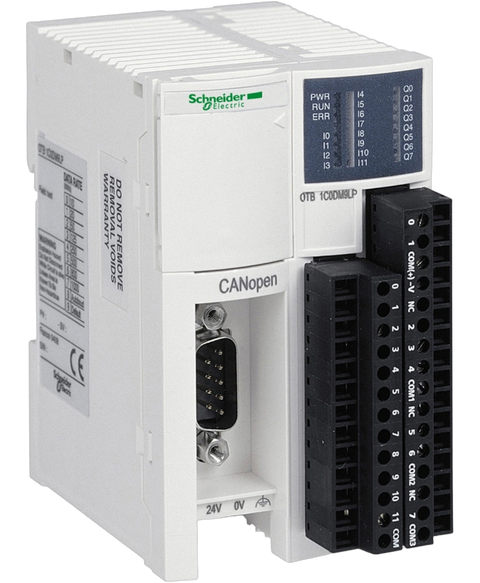

Schneider Electric OTB1C0DM9LP
Discontinued by manufacturer, I,O distributed module, canopen bus d-sub 9 pin, 24 V DC, 19W, npn , pnp discrete input type, 0-1000m, transmission mode: 2 twisted shielded pairs at 10 kbit,s-1Mbit,s
This Schneider Electric OTB1C0DM9LP is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Distributed io range and is referenced internally as PartLogic SKU PL26805538877.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,068.83
(inc. GST)
In Stock
| Range of product | Modicon OTB |
| Product or component type | I/O distributed module |
| Integrated connection type | CANopen bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 10 kbit/s...1 Mbit/s |
| Bus type | CANopen S20, profile: DS 401 V2.1, method of access: CSMA/MA multimaster with priority conforming to DR303-2 | CANopen S20, profile: DS 401 V2.1, method of access: CSMA/MA multimaster with priority conforming to DS301 V4.02 |
| Discrete input number | 12 conforming to EN/IEC 61131 type 1 |
| Discrete input logic | Sink or source |
| Discrete input current | 5 mA for I0...I1 | 5 mA for I6...I7 | 7 mA for I2...I5 | 7 mA for I8...I11 |
| Discrete output number | 2 solid state PNP for Q0...Q1 output logic: source | 6 relay for Q2...Q7 |
| Discrete output current | 2000 mA for relay | 300 mA for solid state |
| Topology | Devices linked by daisy-chaining or tap junctions |
| Number of server device(s) | 63 |
| Bus length | 0…100 m tap-off length: 0…10 m, 500 kbit/s | 0…1000 m tap-off length: 0…120 m, 50 kbit/s | 0…250 m tap-off length: 0…10 m, 250 kbit/s | 0…2500 m tap-off length: 0…300 m, 20 kbit/s | 0…40 m tap-off length: 0…6 m, 800 kbit/s | 0…500 m tap-off length: 0…10 m, 125 kbit/s | 0…5000 m tap-off length: 0…600 m, 10 kbit/s | 0…20 m, 1 Mbit/s |
| Number of devices per segment | 0…16, length of segment <205 m | 0…32, length of segment <185 m | 0…64, length of segment <160 m |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete input type | NPN or PNP |
| Input voltage limits | 20.4...26.4 V |
| Electronic filtering time | 0.035 ms for I0...I1 at state 1 | 0.035 ms for I6...I7 at state 1 | 0.04 ms for I2...I5 at state 1 | 0.04 ms for I8...I11 at state 1 | 0.045 ms for I0...I1 at state 0 | 0.045 ms for I6...I7 at state 0 | 0.15 ms for I2...I5 at state 0 | 0.15 ms for I8...I11 at state 0 |
| Configurable filtering time | 12 ms | 0 ms | 3 ms |
| Input impedance | 3.4 kOhm for I2...I5 | 3.4 kOhm for I8...I11 | 5.7 kOhm for I0...I1 | 5.7 kOhm for I6...I7 |
| Discrete output voltage | 24 V DC solid state output(s) | 240 V AC relay output(s) | 30 V DC relay output(s) |
| Output voltage limits | 20.4...28.8 V solid state |
| Maximum output current | 360 mA, solid state |
| Maximum current per output common | 8 A relay | 0.72 A solid state |
| Current consumption | 30 mA at 5 V DC (at state 1) relay output | 40 mA at 24 V DC (at state 1) relay output | 5 mA at 5 V DC (at state 0) relay output |
| Output overvoltage protection | 38...40 V |
| Maximum tungsten load | <8 W for solid state |
| Response time | 300 µs at state 0 for relay | 300 µs at state 1 for relay | 5 µs at state 0 for solid state | 5 µs at state 1 for solid state |
| Minimum switchable load | 0.1 mA |
| Contact bounce time | <= 1 ms for relay |
| Maximum leakage current | 0.1 mA at state 0 for solid state |
| Drop-out voltage | 1 V at state 1 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute for relay output | 500 Vrms for 1 minute for input circuit | 500 Vrms for 1 minute for solid state output |
| Insulation between channels | None |
| Contact resistance | 30 mOhm |
| Electrical durability | 500000 cycles AC-1 with 500 VA load for relay output | 500000 cycles AC-14 with 250 VA load for relay output | 500000 cycles AC-15 with 200 VA load for relay output | 500000 cycles DC-1 with 60 W load for relay output | 500000 cycles DC-13 with 30 W load for relay output |
| Supply circuit type | DC |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 20.4…26.2 V |
| Input current | 700 mA at 26.2 V for supply circuit |
| Inrush current | 1 A for solid state output | 50 A for supply circuit |
| Power consumption in W | 19 W |
| Maximum number of I/O expansion module | 7 |
| I/O expansion capacity | 132 with screw terminal discrete I/O module(s) | 188 with spring terminal discrete I/O module(s) | 244 with HE10 connector discrete I/O module(s) | 7 x 8I or 7 x 2I or 7 x (4I/2O) with screw terminal analogue I/O module(s) |
| Insulation resistance | >= 10 MOhm between I/O and earth terminals | >= 10 MOhm between power supply and earth |
| I/O connection | Removable screw terminal block |
| Number of common point | 1 for relay output (1 NO) | 1 for relay output (2 NO) | 1 for relay output (3 NO) | 1 for input | 1 for solid state output |
| Counting input number | 2 |
| Counting capacity | 32 bits |
| Counting frequency | 20000 Hz | 5000 Hz |
| Pulse generator number | 2 |
| Pulse generator frequency | 7 kHz |
| Pulse generator function | RPWM pulse width modulation | RPLS pulse generator output |
| Marking | CE |
| Fixing mode | By clips (35 mm symmetrical DIN rail) | By screws (panel with fixing kit) | By screws (solid plate with fixing kit) |
| Status LED | 1 LED per channel (green) I/O | 1 LED (green) PWR | 1 LED (green) RUN | 1 LED (red) ERR |
| Net weight | 0.195 kg |
| IP degree of protection | IP20 |
| Immunity to microbreaks | 10 ms for supply circuit |
| Dielectric strength | 500 V between I/O and earth terminals | 500 V between power supply and earth |
| Standards | CSA | UL 508 | EN 61131-2 | CSA C22.2 No 213 Class I Division 2 Group D | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 213 Class I Division 2 Group A | IEC 61131-2 | CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | cULus |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 30…95 % without condensation |
| Pollution degree | 2 conforming to EN 60664 | 2 conforming to IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 0.075 mm at 10…57 Hz on 35 mm symmetrical DIN rail | 1 gn at 57…150 Hz on 35 mm symmetrical DIN rail |
| Shock resistance | 15 gn for 11 ms conforming to EN 61131 | 15 gn for 11 ms conforming to IEC 61131 |
| Resistance to electrostatic discharge | 4 kV in contact conforming to IEC 61000-4-2 | 8 kV in air conforming to EN 61000-4-2 | 8 kV in air conforming to IEC 61000-4-2 | 4 kV in contact conforming to EN 61000-4-2 |
| Resistance to radiated fields | 10 V/m, radio frequency fields = 80000000…2000000000 Hz conforming to EN 61000-4-3 | 10 V/m, radio frequency fields = 80000000…2000000000 Hz conforming to IEC 61000-4-3 |
| Resistance to fast transients | 1 kV (24 V solid state I/O) conforming to IEC 61000-4-4 | 2 kV (24 V supply) conforming to IEC 61000-4-4 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 13.0 cm |
| Package 1 Weight | 308.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.057 kg |
