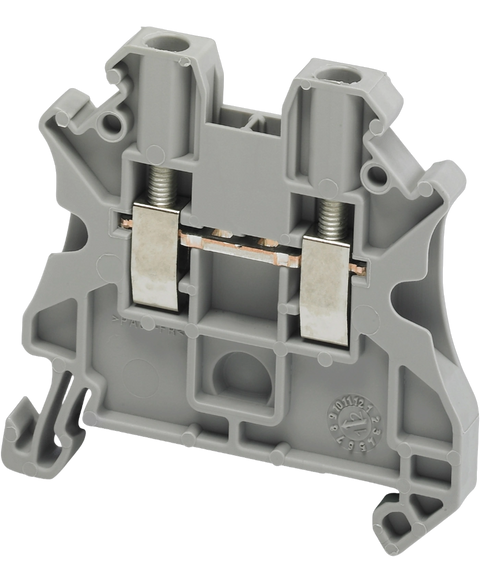

Schneider Electric NSYTRV22
Terminal block, feed through, 2 points, 2.5 mm2, grey, screw terminal
This Schneider Electric NSYTRV22 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Enclosures > Terminal blocks range and is referenced internally as PartLogic SKU PL26805676252.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 2.5 mm² |
| Length | 47.7 mm |
| Colour | Grey |
| Quantity per set | Set of 50 |
| Width | 5.2 mm |
| Height | 47.5 mm |
| Connections - terminals | 1 x screw terminal: upstream (M3) | 1 x screw terminal: downstream (M3) |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 0.14…4 mm², solid cable with cable end | 0.2…2.5 mm², flexible cable with cable end | 0.14…4 mm², solid cable without cable end | 0.14…4 mm², flexible cable without cable end |
| Tightening torque | 0.5…0.6 N.m |
| Wire stripping length | 9 mm |
| Tool type | Connection: screwdriver | Disconnection: screwdriver |
| [Ue] rated operational voltage | 1000 V conforming to EN/IEC 60947-7-1 | 600 V CSA | 600 V UL |
| [In] rated current | 24 A conforming to EN/IEC 60947-7-1 | 20 A UL | 20 A CSA |
| Material | Polyamide 6/6: insulating case | Copper alloy: connector and screw | Copper alloy: commoning link | Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250 | 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093 | 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093 | 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093 | 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 8.2 g |
| Range compatibility | PrismaSeT G | PrismaSeT P | PrismaSet HD | PrismaSeT Pack 250 | PanelSeT | Mureva | PrismaSeT XS | TeSys | Thalassa Thalassa TBP | Thalassa |
| Product compatibility | Spacial enclosures |
| Product certifications | VDE | UL | DNV | CSA | GL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1 | -40…130 °C conforming to VDE 0304-T21 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.700 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 7.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.500 cm |
| Package 2 Width | 6.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 392.000 g |
| Unit Type of Package 3 | S06 |
| Number of Units in Package 3 | 12100 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 108.832 kg |
