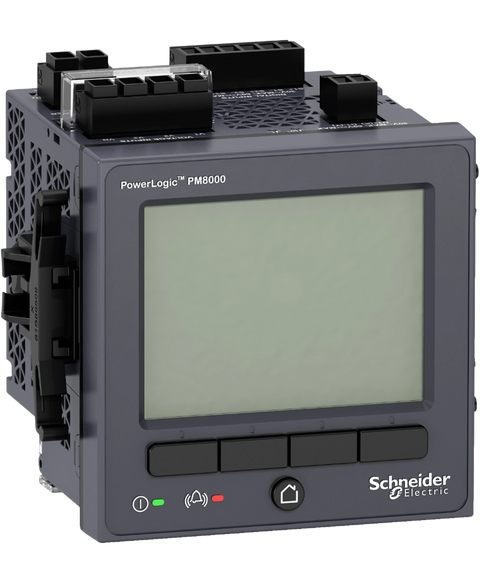

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM8240
The METSEPM8240, manufactured by Schneider Electric, is a panel mount meter developed for monitoring voltage and current. It accommodates a current range from 1 to 10 amperes and operates at AC voltage levels between 90 to 415 volts, as well as DC voltage levels of 110 to 415 volts.
This Schneider Electric METSEPM8240 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805614423.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,353.14
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM8000 |
| Product or component type | Power meter |
| Device short name | PM8240 |
| Market segment | Buildings large building cost management: billing: sub feeder | Buildings small building network management: main incomer | Buildings medium building network management: main incomer | Buildings large building network management: main incomer | Buildings large building network management: sub feeder | Buildings multi-site network management: main incomer | Buildings multi-site network management: sub feeder | Data center network management: main incomer | Data center network management: sub feeder | Healthcare network management: main incomer | Healthcare network management: sub feeder | Industry network management: main incomer | Industry network management: sub feeder | Utility: sub feeder |
| model type | Standard |
| Power quality analysis | conforming to EN 50160: 2010 compliance report | conforming to IEEE 519: 2014 compliance report | conforming to IEC 61000-4-30: class S power quality measurement | up to the 63rd harmonic | harmonic distortion | waveform capture | voltage sag and swell detection | programmablity (logic and math functions) | conforming to IEC 62586 power quality monitoring | disturbance direction detection | rapid voltage change |
| Device application | Power monitoring | WAGES metering |
| Type of measurement | Current | Voltage | Frequency | Active and reactive power total | Apparent power total | Power factor total | Active and reactive power per phase, rms | Apparent power per phase, rms | Power factor per phase, rms |
| supply voltage | 90...415 V AC 45...65 Hz +/- 10 % | 110...415 V DC +/- 10 % |
| Network frequency | 50 Hz | 60 Hz |
| [In] rated current | 1 A | 5 A | 10 A |
| Poles description | 3P + N | 3P | 1P + N |
| Power consumption in VA | 16 VA at 230 V AC |
| Display type | Colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Sampling rate | 256 samples/cycle |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm) | Current (impedance 0.3 mOhm) |
| Measurement voltage | 57…400 V AC 42...69 Hz between phase and neutral | 100…690 V AC 42...69 Hz between phases |
| Frequency measurement range | 42…69 Hz |
| Number of inputs | 3 digital 30 V AC | 3 digital 60 V DC |
| Measurement accuracy | Current +/- 0.1 % | Voltage +/- 0.1 % | Active energy +/- 0.2 % |
| Accuracy class | Class 0.2S active energy conforming to IEC 62053-22 | Class 0.2 active energy conforming to ANSI C12.20 | Class 0.2 active power conforming to IEC 61557-12 | Class 0.5S reactive energy conforming to IEC 62053-24 | Class 0.5 power factor conforming to IEC 61557-12 | Class 0.2 voltage conforming to IEC 61557-12 | Class 0.2 current conforming to IEC 61557-12 |
| Number of outputs | 1 pulse |
| Information displayed | Voltage | Current | Frequency | Power | Energy consumption | Harmonic distortion |
| Communication port protocol | Modbus RTU at 115 kbauds - 2-wire | ION at 115 kbauds - 2-wire | DNP3 | IEC 61850 | Modbus TCP/IP | Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s | RSTP 801.1d 2004 |
| Communication port support | ETHERNET | Screw terminal block: RS485 |
| Communication network type | IPv6 (internet protocol) |
| Data recording | Min/max of instantaneous values | Waveform logs | Sequence of event recording | Time stamping | Alarm logs | Trending/forecasting | Sag and swell logs | Harmonics logs | GPS synchronisation | Data logs | Event logs | 50 data recorders |
| Memory capacity | 512 MB |
| Web services | Customizable home page | File upload/download via FTP | File upload/download via SFTP | Web server | Alarm notification by e-mail | Viewing of captured waveform (FTP) | Viewing of captured waveform (web) | HTTPS server |
| Communication service | SMTP e-mail notification | RSTP support | NTP time synchronization | DHCP | PTP time synchronization |
| Cybersecurity | Enable/disable communication ports | Password protection | Syslog protocol support | Robust security logs | Port hardening |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Installation category | III |
| Safety Construction | III400…690 V conforming to IEC 61010-1:ed. 3 | III400…690 V conforming to EN 61010-1:ed. 3 | III347…600 V conforming to UL 61010-1:ed. 3 | III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Standards | IEC 61557-12 | IEC 62052-11 | IEC 62053-24 | IEC 62053-22 | IEEE 1588 | IEC 62586-2 | IEC 61326-1 |
| Product certifications | CE | CULus | N998 |
| Width | 96 mm |
| Depth | 77.5 mm |
| Height | 96 mm |
| Net weight | 581 g |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | Surge immunity test conforming to IEC 61000-4-5 | Conducted RF disturbances conforming to IEC 61000-4-6 | Magnetic field at power frequency conforming to IEC 61000-4-8 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | Immunity to impulse waves conforming to IEC 61000-4-12 | Conducted and radiated emissions conforming to EN 55022 | Conducted and radiated emissions conforming to EN 55011 | Conducted and radiated emissions conforming to FCC part 15 | Conducted and radiated emissions conforming to ICES-003 | Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 | Surge withstand conforming to IEEE C37.90.1 |
| IP degree of protection | IP54 front: conforming to IEC 60529 | IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 3000 m |
| Compatibility code | PM8240 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.700 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 18.500 cm |
| Package 1 Weight | 840.500 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.124 kg |
