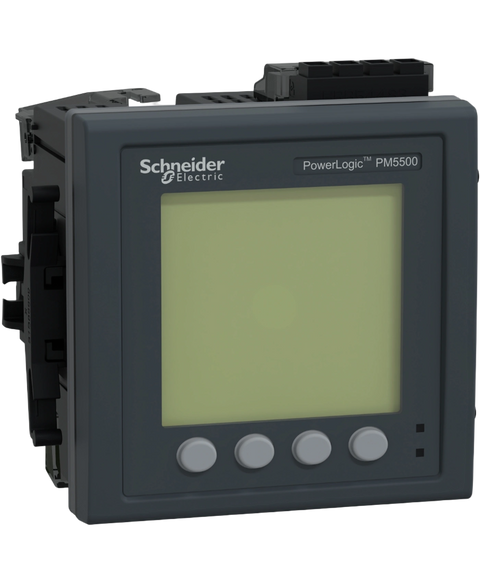

Schneider Electric METSEPM5560
The Schneider Electric METSEPM5560 is designed as a sophisticated power meter capable of operating within a supply voltage range of 100 to 300 V. It exhibits versatility in connectivity through its Ethernet and serial communication gateway while offering real-time measurement capabilities.
This Schneider Electric METSEPM5560 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26801443662.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,250.28
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM5000 |
| Device short name | PM5560 |
| Product or component type | Power meter |
| Power quality analysis | up to the 63rd harmonic |
| Metering type | Measured neutral current | Calculated ground current |
| Device application | Gateway | WAGES metering | Power monitoring | Multi-tariff |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Active and reactive power |
| supply voltage | 100...300 V DC | 90...528 V AC 45...65 Hz |
| Network frequency | 60 Hz | 50 Hz |
| [In] rated current | 1 A | 5 A |
| type of network | 3P + N | 3P | 1P + N |
| Maximum power consumption in VA | 16 VA at 480 V |
| Ride-through time | 35 ms 120 V AC typical | 129 ms 230 V AC typical | 50 ms 125 V DC typical |
| Display type | Backlit LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 128 samples/cycle |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm) | Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 20…400 V AC 45...65 Hz between phase and neutral | 20…828 V AC 45...65 Hz between phases |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Apparent power +/- 0.5 % | Frequency +/- 0.05 % | Active energy +/- 0.2 % | Reactive energy +/- 1 % | Active power +/- 0.2 % | Voltage +/- 0.1 % | Power factor +/- 0.005 | Current +/- 0.15 % | Reactive power +/- 1 % |
| Accuracy class | Class 0.2S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 digital |
| Information displayed | Tariff (8) |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V | JBUS | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V | Ethernet Modbus TCP/IP daisy chain | BACnet IP | DNP3 over ethernet |
| Communication port support | RS485 | ETHERNET |
| Communication gateway | Ethernet/serial |
| Data recording | Event logs | Maintenance logs | Min/max of instantaneous values | Data logs | Alarm logs | Time stamping |
| Memory capacity | 1.1 MB |
| Web services | Alarm notification by e-mail | Diagnostic via predefined web pages | Web server | Real time viewing of data |
| Ethernet service | SNTP client | SNMP-Traps |
| Connections - terminals | Voltage circuit: screw terminal block4 | Control circuit: screw terminal block2 | Current transformer: screw terminal block6 | RS485 link: screw terminal block4 | Digital input: screw terminal block8 | Digital output: screw terminal block4 | Ethernet network: RJ45 connector2 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-3 | IEC 61557-12:2015 | IEC 62053-22:2020 | IEC 62053-24 | IEC 60529 | EN 50470-1 | UL 61010-1 | ANSI C12.20 | IEC 62053-23:2020 | IEC 62052-11:2020 | IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1 | CULus conforming to UL 61010-1 | BTL |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 450 g |
| Electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 | Conducted RF disturbances level 3 conforming to IEC 61000-4-6 | Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 | Conducted and radiated emissions class B conforming to EN 55022 | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | Surge immunity test level 4 conforming to IEC 61000-4-5 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| IP degree of protection | IP54 display: conforming to IEC 60529 | IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 12.600 cm |
| Package 1 Length | 12.600 cm |
| Package 1 Weight | 598.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.900 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 77.372 kg |
