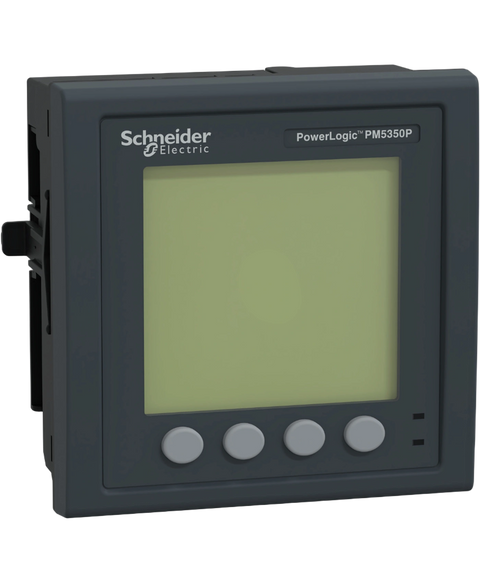

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM5350P
PM5350P power monitor - Multi Tarrif - real time clock
This Schneider Electric METSEPM5350P is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805753432.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$850.52
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM5350 |
| Product or component type | Power meter |
| Device short name | PM5350P |
| Power quality analysis | total demand distortion | total harmonic distortion | up to the 31st harmonic |
| Device application | Multi-tariff | Power monitoring |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Phase angle | Apparent power | Active power | Reactive power | Individual harmonics up to the 31st |
| [Us] rated supply voltage | 85...265 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 50 Hz | 60 Hz |
| [In] rated current | 1 A | 5 A |
| type of network | 3P + N | 3P | 1P + N |
| Power consumption in W | 4 W at 125 V DC | 5 W at 300 V DC | 4 W at 120 V AC | 5 W at 230 V AC |
| Power consumption in VA | 7 VA at 120 V AC | 9 VA at 230 V AC | 11.9 VA at 265 V AC |
| Display type | LCD screen with white backlighting |
| Display colour | Monochrome |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 1 A | 5 A |
| Analogue input type | Current 0.05...9 A (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…480 V AC 45...70 Hz phase to phase | 20…277 V AC 45...70 Hz phase to neutral |
| Frequency measurement range | 45…70 Hz |
| Measurement accuracy | Current +/- 0.2 % | Voltage +/- 0.2 % | Reactive power +/- 2 % | Frequency 0.05 % | Power factor +/- 0.005 | Active energy +/- 0.5 % | Reactive energy +/- 2 % | Apparent energy +/- 0.5 % | Active power +/- 0.5 % | Apparent power +/- 0.5 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 | Class 0.5 active energy conforming to IEC 61557-12 | Class 2 reactive energy conforming to IEC 62053-23 | Class 2 reactive energy conforming to IEC 61557-12 | Class 0.5 power conforming to IEC 61557-12 | Class 5 harmonic distortion (I THD & U THD) conforming to IEC 61557-12 | Class 5 individual harmonics up to the 15th conforming to IEC 61557-12 |
| Number of inputs | 4 digital |
| Discrete input type | Discrete input: 18.5...36 V DC 2 Hz (impedance 110 kOhm) |
| Number of outputs | 2 relay |
| Maximum switching current | Relay outputs 2 A at 250 V AC inductive load, cos phi = 0.4 |
| Information displayed | Tariff (16) |
| Communication port protocol | JBUS | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2-wire, insulation 2500 V |
| Communication port support | Terminal block: RS485 |
| Realtime clock | Built-in battery (3 years), drift: +/- 0.5 s/day |
| Data recording | Min/max of instantaneous values | Alarms |
| Mounting mode | Flush-mounted |
| Type of installation | Indoor installation |
| Standards | IEC 61010-1 | IEC 61557-12 | IEC 62052-11 | IEC 62053-22 |
| Product certifications | CE conforming to IEC 61010-1 | CULus conforming to CSA C22.2 No 61010-1 | UL conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | Embedded : 44 mm | Outside : 13 mm | Total : 57 mm |
| Height | 96 mm |
| Net weight | 0.25 kg |
| Electromagnetic compatibility | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | Electrostatic discharge conforming to IEC 61000-4-2 | Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 | Conducted RF disturbances conforming to IEC 61000-4-6 | Immunity to magnetic fields conforming to IEC 61000-4-8 | Immunity to voltage dips conforming to IEC 61000-4-11 | Conducted and radiated emissions class A conforming to EN 55011 | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 | Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 |
| Electrical insulation class | Double insulation | Class II |
| Measurement category | Category III 480 V conforming to IEC 61010-1 | Category III 300 V conforming to UL 61010-1 | Category III 300 V conforming to CSA C22.2 No 61010-1 | Category II 690 V conforming to IEC 61010-1 |
| Overvoltage category | III |
| IP degree of protection | IP30 back: conforming to IEC 60529 | IP54 front face: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C | -20…70 °C at for display module | -25…20 °C at with derating |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.077 cm |
| Package 1 Width | 12.447 cm |
| Package 1 Length | 12.715 cm |
| Package 1 Weight | 410.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.571 kg |
