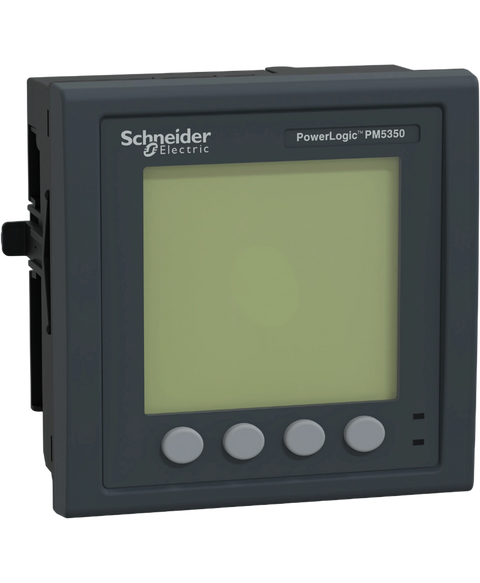

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM5350
Power meter, powerlogic, 11.9va, 3.8W, 45,65Hz, number of inputs 4 digital
This Schneider Electric METSEPM5350 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805537503.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$880.29
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM5350 |
| Device short name | PM5350 |
| Product or component type | Power meter |
| Power quality analysis | total demand distortion | total harmonic distortion |
| Device application | Power monitoring |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Apparent power | Active power | Reactive power |
| supply voltage | 85...265 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 50 Hz | 60 Hz |
| [In] rated current | 5 A | 1 A |
| type of network | 1P + N | 3P + N | 3P |
| Maximum power consumption in VA | 11.9 VA |
| Ride-through time | 100 ms 120 V AC typical | 400 ms 230 V AC typical | 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 6 lines |
| Sampling rate | 32 samples/cycle |
| Measurement current | 5…9000 mA |
| Analogue input type | Current 0.05...9 A (impedance <= 0.3 mOhm) | Voltage (impedance 10 MOhm) |
| Measurement voltage | 35…480 V AC 45...65 Hz phase to phase | 20…277 V AC phase to neutral |
| Frequency measurement range | 45…70 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Current +/- 0.3 % | Voltage +/- 0.3 % | Frequency +/- 0.05 % | Power factor +/- 0.005 | Active energy +/- 0.5 % | Reactive energy +/- 2 % | Active power +/- 0.5 % | Apparent power +/- 0.5 % | Apparent energy +/- 0.5 % | Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 | Class 0.5 active energy conforming to IEC 61557-12 | Class 2 reactive energy conforming to IEC 62053-23 | Class 2 reactive energy conforming to IEC 61557-12 | Class 0.5 power conforming to IEC 61557-12 |
| Number of outputs | 2 relay |
| Communication port protocol | JBUS | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds |
| Communication port support | Terminal block: RS485 |
| Data recording | Min/max of instantaneous values | Alarms |
| Connections - terminals | Voltage circuit: screw terminal block4 | Control circuit: screw terminal block2 | Current transformer: screw terminal block6 | Input/output circuit: screw terminal block6 | Relay output: screw terminal block4 |
| Mounting mode | Flush-mounted |
| Type of installation | For indoor use in a stationary panel |
| Standards | IEC 61010-1 |
| Product certifications | CE | CULus |
| Width | 96 mm |
| Depth | 44 mm |
| Height | 96 mm |
| Net weight | 0.25 kg |
| Electromagnetic compatibility | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | Electrostatic discharge conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 | Conducted RF disturbances conforming to IEC 61000-4-6 | Immunity to impulse waves conforming to IEC 61000-4-12 | Conducted and radiated emissions class A conforming to EN 55011 | Limits for harmonic current emissions conforming to IEC 61000-3-2 |
| Overvoltage category | III |
| IP degree of protection | IP30 rear: conforming to IEC 60529 | IP54 display: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C meter | -20…70 °C display | -25…-20 °C (with reduced performance) display |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.200 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 346.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.829 kg |
