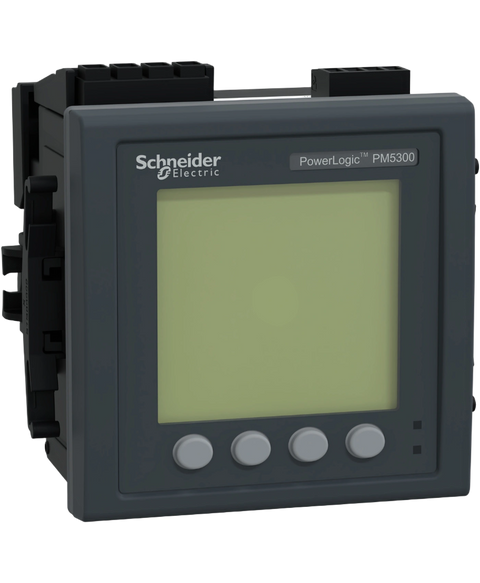

Schneider Electric METSEPM5340
Schneider Electric's METSEPM5340 is a three-phase power meter designed for precise energy monitoring. It accommodates supply voltages of 90 VAC to 450 VAC and 100 VDC to 300 VDC, ensuring flexibility for various applications.
This Schneider Electric METSEPM5340 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805324683.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | PowerLogic |
| Product name | PowerLogic PM5000 |
| Device short name | PM5340 |
| Product or component type | Power meter |
| Power quality analysis | up to the 31st harmonic |
| Device application | Multi-tariff | Power monitoring |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Active and reactive power |
| supply voltage | 90...450 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 60 Hz | 50 Hz |
| [In] rated current | 5 A | 1 A |
| type of network | 3P | 1P + N | 3P + N |
| Maximum power consumption in VA | 11 VA at 415 V |
| Ride-through time | 100 ms 120 V AC typical | 400 ms 230 V AC typical | 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 5…9000 mA |
| Analogue input type | Voltage (impedance 10 MOhm) | Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases | 20…400 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 digital |
| Measurement accuracy | Active energy +/- 0.5 % | Reactive energy +/- 2 % | Active power +/- 0.5 % | Apparent power +/- 0.5 % | Frequency +/- 0.05 % | Power factor +/- 0.5 | Current +/- 0.5 % | Voltage +/- 0.5 % | Apparent energy +/- 0.5 % | Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 relay | 2 digital |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V | BACnet IP |
| Communication port support | ETHERNET |
| Data recording | Data logs | Alarm logs | Time stamping | Event logs | Min/max of instantaneous values | Maintenance logs |
| Memory capacity | 256 kB |
| Connections - terminals | Voltage circuit: screw terminal block4 | Control circuit: screw terminal block2 | Current transformer: screw terminal block6 | Input/output circuit: screw terminal block6 | Relay output: screw terminal block4 | Ethernet network: RJ45 connector |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-1 | IEC 62053-24 | IEC 60529 | UL 61010-1 | IEC 62053-22:2020 | EN 50470-3 | IEC 61557-12:2015 | IEC 62053-23:2020 | IEC 62052-11:2020 | IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1 | CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 430 g |
| Electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 | Electrostatic discharge level 4 conforming to IEC 61000-4-2 | Conducted RF disturbances level 3 conforming to IEC 61000-4-6 | Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 | Conducted and radiated emissions class B conforming to EN 55022 |
| IP degree of protection | IP51 display: conforming to IEC 60529 | IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C meter | -20…70 °C display | -25…-20 °C (with reduced performance) display |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 12.700 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 502.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.600 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 62.800 kg |
