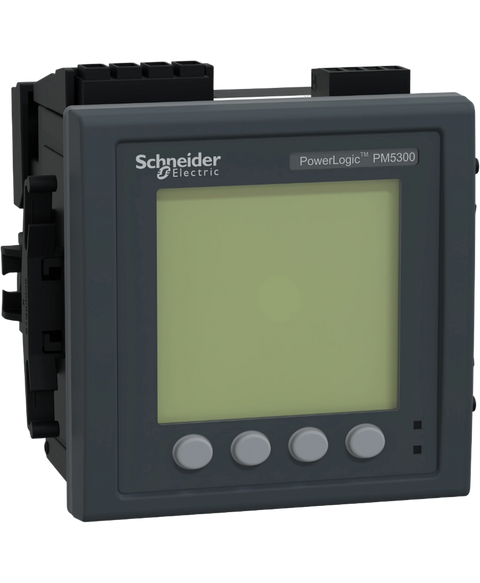

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM5330
Power meter, 35VAC to 760VAC; NO. of digits , alpha:-; meter function:energy; meter range:-; digit height:-; panel cutout height:96mm; panel cutout width:96mm; supply voltage min:35VAC; supply voltage max:760VAC; product range:- rohs compliant: yes
This Schneider Electric METSEPM5330 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805614364.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,163.80
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM5000 |
| Device short name | PM5330 |
| Product or component type | Power meter |
| Power quality analysis | up to the 31st harmonic |
| Device application | Power monitoring | Multi-tariff |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Active and reactive power |
| supply voltage | 90...450 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 50 Hz | 60 Hz |
| [In] rated current | 1 A | 5 A |
| type of network | 3P + N | 3P | 1P + N |
| Maximum power consumption in VA | 11 VA at 415 V |
| Ride-through time | 80 ms 120 V AC typical | 100 ms 230 V AC typical | 100 ms 415 V AC typical | 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 5…8500 mA |
| Analogue input type | Voltage (impedance 5 MOhm) | Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases | 20…400 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 digital |
| Measurement accuracy | Active energy +/- 0.5 % | Reactive energy +/- 2 % | Active power +/- 0.5 % | Apparent power +/- 0.5 % | Frequency +/- 0.05 % | Power factor +/- 0.5 | Current +/- 0.5 % | Voltage +/- 0.5 % | Apparent energy +/- 0.5 % | Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 relay | 2 digital |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V | JBUS |
| Communication port support | RS485 |
| Data recording | Maintenance logs | Time stamping | Alarm logs | Data logs | Min/max of instantaneous values | Event logs |
| Memory capacity | 256 kB |
| Connections - terminals | Voltage circuit: screw terminal block4 | Control circuit: screw terminal block2 | Current transformer: screw terminal block6 | Input/output circuit: screw terminal block6 | Relay output: screw terminal block4 | Ethernet network: RJ45 connector |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | UL 61010-1 | IEC 62053-22:2020 | IEC 61557-12:2015 | EN 50470-3 | IEC 60529 | IEC 62053-24 | EN 50470-1 | IEC 62053-23:2020 | IEC 62052-11:2020 | IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1 | CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 430 g |
| Electromagnetic compatibility | Conducted and radiated emissions class B conforming to EN 55022 | Immunity to conducted disturbances - test level: 150 kHz...80 MHz level 4 conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test level 3 conforming to IEC 61000-4-4 | Radiated radio-frequency electromagnetic field immunity test level 4 conforming to IEC 61000-4-3 | Voltage dips and interruptions immunity test class B conforming to IEC 61000-4-11 | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 | Electrostatic discharge level 4 conforming to IEC 61000-4-2 | Conducted RF disturbances level 3 conforming to IEC 61000-4-6 | Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 | Immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6 | Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 | Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 | Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 | Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 |
| IP degree of protection | IP54 display: conforming to IEC 60529 | IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C meter |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 2000 m CAT III | 3000 m CAT II |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 503.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.667 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 63.336 kg |
