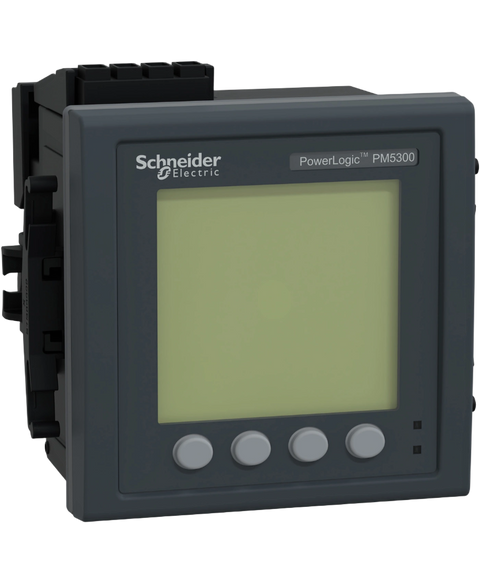

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM5320
Power meter, 3-ph, 100-415VAC, panel; NO. of phases:three phase; supply voltage:100VAC to 415VAC, 125VDC to 250VDC; energy meter mounting:panel; product range:powerlogic pm5000 series; svhc:NO svhc (15-jan-2018) rohs compliant: yes
This Schneider Electric METSEPM5320 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805325462.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,037.64
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM5000 |
| Device short name | PM5320 |
| Product or component type | Power meter |
| Power quality analysis | up to the 31st harmonic |
| Device application | Multi-tariff | Power monitoring |
| Type of measurement | Current | Voltage | Frequency | Power factor | Energy | Active and reactive power |
| supply voltage | 90...450 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 50 Hz | 60 Hz |
| [In] rated current | 1 A | 5 A |
| type of network | 1P + N | 3P + N | 3P |
| Maximum power consumption in VA | 11 VA at 415 V |
| Ride-through time | 80 ms 120 V AC typical | 100 ms 230 V AC typical | 100 ms 415 V AC typical | 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 5…8500 mA |
| Analogue input type | Voltage (impedance 5 MOhm) | Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases | 20…440 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 digital |
| Measurement accuracy | Active energy +/- 0.5 % | Reactive energy +/- 2 % | Active power +/- 0.5 % | Apparent power +/- 0.5 % | Frequency +/- 0.05 % | Power factor +/- 0.5 | Current +/- 0.5 % | Voltage +/- 0.5 % | Apparent energy +/- 0.5 % | Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 digital |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V | BACnet IP |
| Communication port support | ETHERNET |
| Data recording | Maintenance logs | Alarm logs | Min/max of instantaneous values | Event logs | Time stamping | Data logs |
| Memory capacity | 256 kB |
| Connections - terminals | Voltage circuit: screw terminal block4 | Control circuit: screw terminal block2 | Current transformer: screw terminal block6 | Input/output circuit: screw terminal block6 | Relay output: screw terminal block4 | Ethernet network: RJ45 connector |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | IEC 62053-22:2020 | EN 50470-1 | IEC 60529 | IEC 61557-12:2015 | UL 61010-1 | EN 50470-3 | IEC 62053-24 | IEC 62053-23:2020 | IEC 62052-11:2020 | IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1 | CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 430 g |
| Electromagnetic compatibility | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage class A conforming to IEC 61000-3-3 | Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 | Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | Surge immunity test level 4 conforming to IEC 61000-4-5 | Voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11 | Limits for harmonic current emissions class A conforming to IEC 61000-3-2 | Conducted RF disturbances level 3 conforming to IEC 61000-4-6 | Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 | Conducted and radiated emissions class B conforming to EN 55022 | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3 | Radiated radio-frequency electromagnetic field immunity test class B conforming to IEC 61000-4-3 |
| IP degree of protection | IP54 display: conforming to IEC 60529 | IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C meter | -20…70 °C display | -25…-20 °C (with reduced performance) display |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 2000 m CAT III | 3000 m CAT II |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 12.600 cm |
| Package 1 Length | 12.600 cm |
| Package 1 Weight | 472.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.306 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 61.340 kg |
