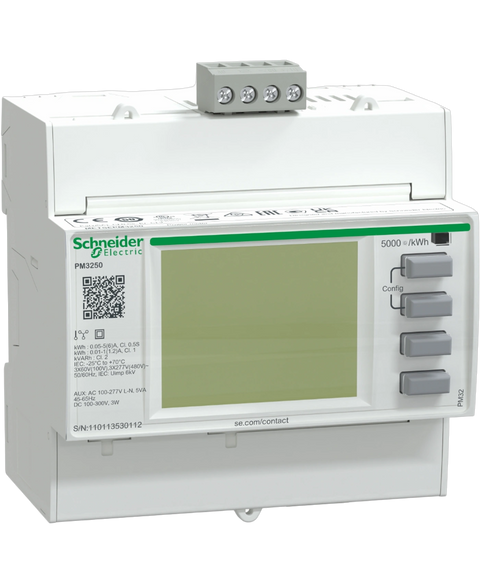

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric METSEPM3250
PM3250 power meter - RS485
This Schneider Electric METSEPM3250 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Energy meters range and is referenced internally as PartLogic SKU PL26805557714.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$792.40
(inc. GST)
In Stock
| Range | PowerLogic |
| Product name | PowerLogic PM3000 |
| Product or component type | Power meter |
| Device short name | PM3250 |
| Market segment | Buildings small building cost management: billing: sub feeder | Buildings medium building cost management: billing: sub feeder | Buildings large building cost management: billing: sub feeder | Buildings multi-site cost management: billing: sub feeder | Data center cost management: billing: sub feeder | Healthcare cost management: billing: sub feeder | Industry cost management: billing: sub feeder | Buildings small building cost management: cost allocation: sub feeder | Buildings medium building cost management: cost allocation: sub feeder | Buildings large building cost management: cost allocation: sub feeder | Buildings multi-site cost management: cost allocation: sub feeder | Data center cost management: cost allocation: sub feeder | Healthcare cost management: cost allocation: sub feeder | Industry cost management: cost allocation: sub feeder |
| Power quality analysis | up to the 15th harmonic |
| Device application | Multi-tariff | Power monitoring | Sub billing |
| Type of measurement | Active and reactive power | Apparent power | Current | Voltage | Energy | Power factor | Frequency | Total current harmonic distortion THD (I) | Total voltage harmonic distortion THD (U) |
| supply voltage | 100...277 V AC 45...65 Hz | 173...480 V AC 45...65 Hz | 100...300 V DC |
| Network frequency | 60 Hz | 50 Hz |
| [In] rated current | 5 A | 1 A |
| type of network | 1P + N | 3P | 3P + N |
| Power consumption in VA | 5 VA |
| Display type | Backlit LCD |
| Display resolution | 128 x 96 pixels |
| Sampling rate | 32 samples/cycle |
| Measurement current | 0.02…1.2 A | 0.05…6 A |
| Analogue input type | Current 0...5 A | Current 0...1 A |
| Measurement voltage | 50…330 V AC 45...65 Hz direct | 50…330 V AC 45...65 Hz phase to neutral | 80…570 V AC 45...65 Hz direct | 80…570 V AC 45...65 Hz phase to phase | 570…999000 V AC 45...65 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 0 |
| Measurement accuracy | Current 0.3 % 0.5...6 A | Current 0.5 % 0.1...1.2 A | Voltage 0.3 % 50...330 V | Voltage 0.3 % 80...570 V |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 | Class 1 active energy conforming to IEC 62053-21 | Class 2 reactive energy conforming to IEC 62053-23 | Class C active energy conforming to EN 50470-3 |
| Number of outputs | 0 |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus at 9.6...38.4 kbauds |
| Communication port support | RS485 |
| Data recording | Time stamping | Min/max of instantaneous values | 5 alarms |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Standards | BS EN 61557-12 | IEC 61557-12 | EN 61557-12 | BS EN 61326-1 | IEC 61326-1 | EN 61326-1 | BS EN 62052-11 | IEC 62052-11 | EN 62052-11 | BS EN 62053-21 | IEC 62053-21 | EN 62053-21 | BS EN 62053-22 | IEC 62053-22 | EN 62052-22 | BS EN 62053-23 | IEC 62053-23 | EN 62052-23 | BS EN 61010-1 | EN 61010-1 | IEC 61010-1 | UL 61010-1 | BS EN 61010-2-30 | IEC 61010-2-30 | EN 61010-2-30 | UL 61010-2-30 | ANSI C12.20 |
| Product certifications | CE conforming to IEC 61010-1 (safety) | CE conforming to EN 61557-12 (power monitor) | CE conforming to EN/IEC 61326-1 (EMC) | UKCA conforming to BS EN 61010-1 (safety) | UKCA conforming to BS EN 61557-12 (power monitor) | UKCA conforming to BS EN 61326-1 (EMC) | CULus conforming to EN 61010-1 (safety) | CULus conforming to UL 61010-1 (safety) | EAC (sub-meter) | RCM |
| Width | 90 mm |
| Depth | 70 mm |
| Height | 95 mm |
| Net weight | 0.26 kg |
| Electromagnetic compatibility | Electrostatic discharge level 4 conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 | Surge immunity test level 4 conforming to IEC 61000-4-5 | Conducted RF disturbances level 3 conforming to IEC 61000-4-6 | Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8 | Conducted and radiated emissions class B conforming to EN 55022 |
| Overvoltage category | III |
| IP degree of protection | IP40 front panel: conforming to IEC 60529 | IP20 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | < 3000 m |
| Compatibility code | PM3250 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.700 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 13.500 cm |
| Package 1 Weight | 416.700 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.067 kg |
