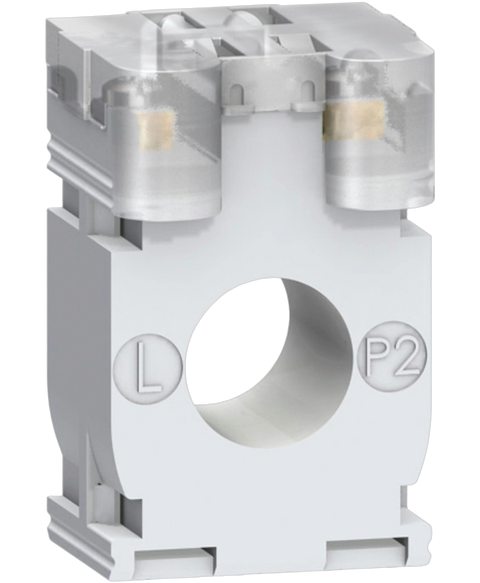

Schneider Electric METSECT5CC010
Current transformer, 100,5A, 720VAC, 50,60Hz, 3 kv, IP20, replacement for 16453
This Schneider Electric METSECT5CC010 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Current transformers range and is referenced internally as PartLogic SKU PL26906198747.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 2 VA | Class 1 at 2.5 VA | Class 3 at 3.5 VA |
| [In] rated current | 100 A |
| Current transformer type | Tropicalised for cable | Solid core |
| Current transformer ratio | 100/5 |
| [Ith] conventional free air thermal current | 6 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | By screws | Clip-on |
| Mounting support | Mounting plate | DIN rail |
| Width | Outside: 44 mm |
| Height | Outside: 65 mm |
| Depth | Frame : 30 mm | Total : 37 mm |
| Diameter | 21 mm |
| Net weight | 0.19 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 21 mm |
| Sealing | With |
| Standards | VDE 0414 | IEC 61869-2 |
| Product certifications | EAC | CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.600 cm |
| Package 1 Width | 5.600 cm |
| Package 1 Length | 8.400 cm |
| Package 1 Weight | 190.300 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.810 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 27.500 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 90.080 kg |
