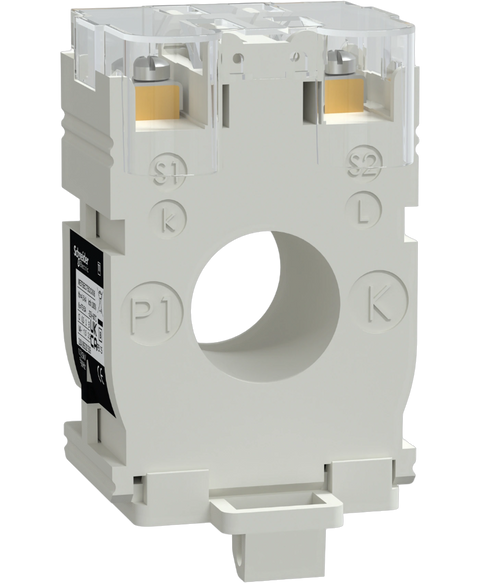

Schneider Electric METSECT5CC008
Current transformer, tropicalised for cable, 5A, 720VAC, 50,60Hz, 4.5 ka, DIN rail mount
This Schneider Electric METSECT5CC008 is supplied brand new by PartLogic for machinery automation, electrical maintenance, replacement part sourcing and industrial repair applications. It forms part of our Industrial automation > Power monitoring > Current transformers range and is referenced internally as PartLogic SKU PL26801411020.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 1 at 1.5 VA | Class 3 at 2.5 VA |
| [In] rated current | 75 A |
| Current transformer type | Tropicalised for cable | Solid core |
| Current transformer ratio | 75/5 |
| [Ith] conventional free air thermal current | 4.5 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Clip-on | By screws |
| Mounting support | DIN rail | Mounting plate |
| Width | Outside: 44 mm |
| Height | Outside: 65 mm |
| Depth | Frame : 30 mm | Total : 37 mm |
| Diameter | 21 mm |
| Net weight | 0.19 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 21 mm |
| Sealing | With |
| Standards | IEC 61869-2 | VDE 0414 |
| Product certifications | CE | EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 8.200 cm |
| Package 1 Weight | 187.400 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.670 kg |
