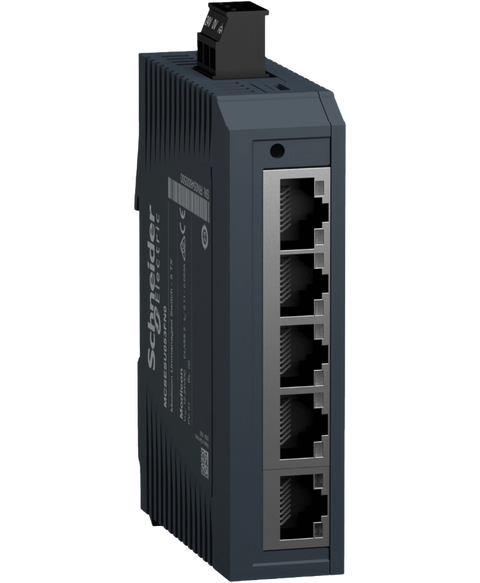

Schneider Electric MCSESU053FN0
Network switch, modicon networking, standard unmanaged, 5 ports for copper
This Schneider Electric MCSESU053FN0 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805550943.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP unmanaged switch |
| Communication port protocol | Ethernet TCP/IP |
| Port Ethernet | 10/100BASE-TX - 5 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 1.3 W |
| Electrical connection | Removable connector 3 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE | UL | RCM |
| Local signalling | 1 LED (green) for power supply | 1 LED per channel (yellow) for data rate (ETH LINK) | 1 dual colour LED (green/yellow) for link status |
| Ethernet cabling system | TF switches |
| Width | 26 mm |
| Height | 102 mm |
| Depth | 79 mm |
| Net weight | 0.125 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP30 |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201 | EN/IEC 61131-2 |
| Product certifications | CE | UL | RCM | EAC | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 24.300 cm |
| Package 1 Weight | 262.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.146 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 36.580 kg |
