Schneider Electric M9F11316

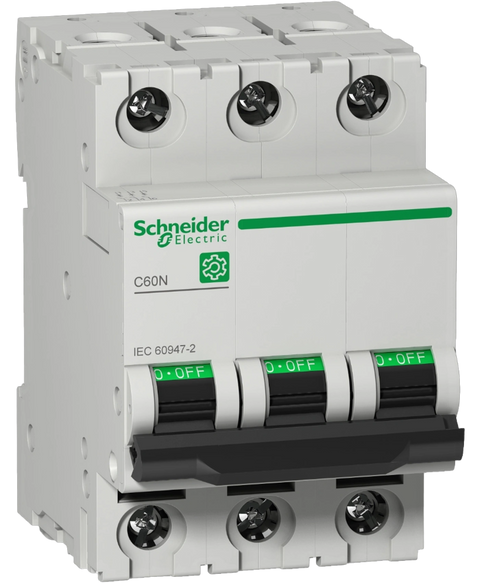

Circuit breaker, miniature, multi9 c60n, 16A, 3-pole, 415VAC, 50,60Hz, 10 ka, c-curve, DIN rail mount
This Schneider Electric M9F11316 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805522823.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Multi9 |
| Product name | Multi9 C60 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C60N |
| Device application | Distribution |
| Poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 16 A at 50 °C conforming to EN/IEC 60947-2 |
| Network type | DC | AC |
| Network frequency | 50/60 Hz |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 30 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 | 10 kA Icu at 415 V AC 50/60 Hz between phases conforming to EN/IEC 60947-2 | 20 kA Icu at 240 V AC 50/60 Hz between phases conforming to EN/IEC 60947-2 | 6 kA Icu at 440 V AC 50/60 Hz between phases conforming to EN/IEC 60947-2 |
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
| Standards | EN/IEC 60947-2 |
| Product certifications | EAC | KC | CCC |
| Quality labels | UKCA | RCM |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz between phases | 415 V AC 50/60 Hz between phases | 440 V AC 50/60 Hz between phases | <= 125 V DC |
| Magnetic tripping limit | 8.5 x In +/- 20 % AC | 12 x In +/- 20 % DC |
| [Ics] rated service breaking capacity | 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz | 16 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz | 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz | 30 kA 100 % conforming to EN/IEC 60947-2 - <= 125 V DC |
| Limitation class | 3 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Height | 81 mm |
| Width | 54 mm |
| Depth | 72 mm |
| Net weight | 0.36 kg |
| Colour | Grey |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Provision for padlocking | Padlockable |
| Connections - terminals | Tunnel type terminal (top or bottom)1…25 mm² - rigid | Tunnel type terminal (top or bottom)1…25 mm² - flexible | Tunnel type terminal (top or bottom)1…25 mm² - flexible with ferrule |
| Wire stripping length | 14 mm for top or bottom connection |
| Tightening torque | 2 N.m top or bottom |
| Earth-leakage protection | Separate block |
| IP degree of protection | IP20 conforming to IEC 60529 | IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree | 3 conforming to EN/IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -30…70 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 314.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 8.800 cm |
| Package 2 Length | 22.000 cm |
| Package 2 Weight | 1.302 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 16.111 kg |
