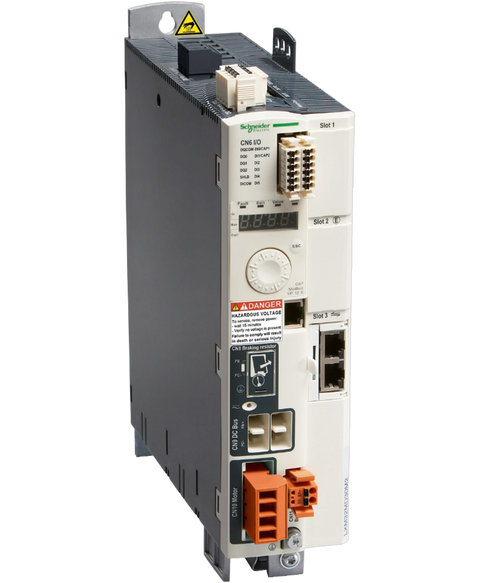

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LXM32MD18M2
motion servo drive - Lexium 32 - single phase supply voltage 115,230V - 0.5,1kW
This Schneider Electric LXM32MD18M2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26895913120.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,501.18
(inc. GST)
In Stock
| Range of product | Lexium 32 |
| Device short name | LXM32M |
| Product or component type | Motion servo drive |
| Format of the drive | Book |
| Network number of phases | Single phase |
| [Us] rated supply voltage | 100...120 V - 15...10 % | 200...240 V - 15...10 % |
| Supply voltage limits | 85…132 V | 170…264 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 6 A at 8 kHz |
| Output current 3s peak | 10 A at 115 V for 5 s | 18 A at 230 V for 5 s |
| Continuous power | 800 W at 115 V | 1600 W at 230 V |
| Nominal power | 0.5 kW at 115 V 8 kHz | 1 kW at 230 V 8 kHz |
| Line current | 9.9 A 74 % at 115 V, with external line choke of 2 mH | 10.6 A 93 % at 230 V, with external line choke of 2 mH | 8.5 A 147 % at 115 V, without line choke | 8.4 A 148 % at 230 V, without line choke |
| Switching frequency | 8 kHz |
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable (temperature: 50 °C) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal, clamping capacity: 3 mm², AWG 12 (PA/+, PBI, PBe) | Terminal, clamping capacity: 5 mm², AWG 10 (CN1) | Terminal, clamping capacity: 5 mm², AWG 10 (CN10) |
| Tightening torque | PA/+, PBI, PBe: 0.5 N.m | CN1: 0.7 N.m | CN10: 0.7 N.m |
| Discrete input number | 2 capture discrete input(s) | 2 safety discrete input(s) | 4 logic discrete input(s) |
| Discrete input type | Capture (CAP terminals) | Logic (DI terminals) | Safety (compliment of STO_A, compliment of STO_B terminals) |
| Sampling duration | DI: 0.25 ms discrete | 0.25 ms |
| Discrete input voltage | 24 V DC for capture | 24 V DC for logic | 24 V DC for safety |
| Discrete input logic | Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1 | Positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1 | Positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic output(s) (DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative (DO) conforming to EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms for compliment of STO_A, compliment of STO_B | 2 µs for CAP | 0.25 µs...1.5 ms for DI |
| Braking current | 50 mA |
| Response time on output | 250 µs (DO) for discrete output(s) |
| Control signal type | Servo motor encoder feedback | Pulse train output (PTO) RS422 <500 kHz <100 m | Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m | Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m | Pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m |
| Protection type | Against reverse polarity: inputs signal | Against short-circuits: outputs signal |
| Safety function | STO (safe torque off), integrated | SS1 (safe stop 1), with separated eSM safety card | SS2 (safe stop 2), with separated eSM safety card | SLS (safe limited speed), with separated eSM safety card | SOS (safe operating stop), with separated eSM safety card |
| Safety level | SIL 3 conforming to EN/IEC 61508 | PL = e conforming to ISO 13849-1 |
| Communication interface | Modbus TCP, with separated communication card | CANopen, with separated communication card | CANmotion, with separated communication card | Ethernet/IP, with separated communication card | EtherCAT, with separated communication card | Profibus, with separated communication card | Profinet, with separated communication card | Analog I/O, with separated communication card | Digital I/O, integrated |
| Status LED | 1 LED (red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH (70 mm, 1 motor stacks) | Servo motor BMH (70 mm, 3 motor stacks) | Servo motor BSH (70 mm, 3 motor stacks) | Servo motor BSH (100 mm, 1 motor stacks) | Servo motor BMH (100 mm, 2 motor stacks) | Servo motor BSH (100 mm, 2 motor stacks) |
| Width | 68 mm |
| Height | 270 mm |
| Depth | 237 mm |
| Net weight | 1.9 kg |
| Electromagnetic compatibility | Conducted EMC, class A group 1 conforming to EN 55011 | Conducted EMC, class A group 2 conforming to EN 55011 | Conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3 | Conducted EMC, category C2 conforming to EN/IEC 61800-3 | Conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3 | Electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2 | Susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3 | 1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5 | Electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4 | Radiated EMC, class A group 2 conforming to EN 55011 | Radiated EMC, category C3 conforming to EN/IEC 61800-3 |
| Standards | EN/IEC 61800-5-1 | EN/IEC 61800-3 |
| Product certifications | TÜV | UL | CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529 | IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 | 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60028-2-27 |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 0…50 °C conforming to UL |
| Ambient air temperature for storage | -25…70 °C |
| Type of cooling | Integrated fan |
| Operating altitude | <= 1000 m without derating | > 1000...3000 m with conditions |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.800 cm |
| Package 1 Width | 27.700 cm |
| Package 1 Length | 32.800 cm |
| Package 1 Weight | 2.412 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.558 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 54.000 kg |
