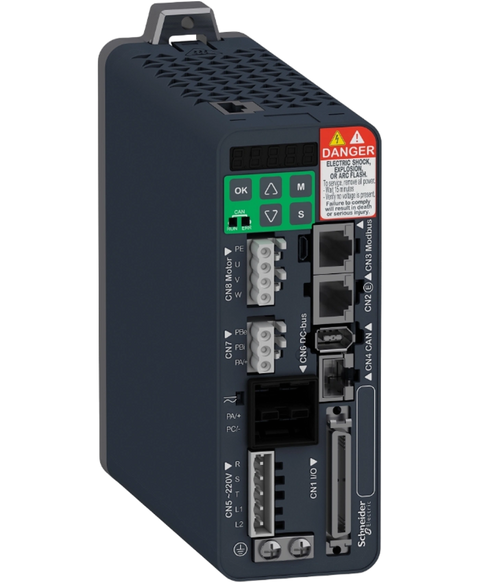

Schneider Electric LXM28SU07M3X
Servo Drive AC Lexium28 Sercos III 750W 1~,3~, 200,230 Vac
This Schneider Electric LXM28SU07M3X is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26805655733.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$829.26
(inc. GST)
In Stock
| Range of product | Lexium 28 |
| Device short name | LXM28S |
| Product or component type | Motion servo drive |
| Format of the drive | Compact housing |
| Line current | 6 A 181.8 % at 220 V, single phase | 6 A 160.6 % at 220 V, three phase |
| Network number of phases | Single phase | Three phase |
| [Us] rated supply voltage | 200...240 V (- 10...15 %) for three phase | 200...240 V (- 20...15 %) for single phase |
| Supply voltage limits | 200…255 V three phase | 170…255 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Without EMC filter |
| Continuous output current | 4.5 A at 16 kHz |
| Output current 3s peak | 13.5 A at 220 V |
| Continuous power | 750 W at 220 V |
| Nominal power | 0.75 kW at 220 V 16 kHz |
| Switching frequency | 16 kHz |
| Overvoltage category | III |
| Maximum leakage current | 1.3 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Shielded motor cable (temperature: 0…55 °C) copper |
| Electrical connection | Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2) | Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T) | Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE) | Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe) |
| Discrete input number | 8 programmable (CN1) | 2 fast capture (CN1) | 1 safety function STO (CN9) |
| Discrete input voltage | 24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 4 logic output (CN1) at 12...24 V DC | 1 pulse train output (PTO) (CN1) |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Positive or negative (CN1) |
| Control signal type | Servo motor encoder feedback CN2 |
| Protection type | Against reverse polarity: inputs signal | Against short-circuits: outputs signal | Overcurrent: motor | Overvoltage: motor | Undervoltage: motor | Overheating: motor | Overload: motor | Overspeed: motor |
| Safety function | STO (safe torque off), integrated |
| Safety level | SIL 2 conforming to IEC 61800-5-2: 2007 | SIL 2 conforming to IEC 61508-1: 2010 | PL d/category 3 conforming to ISO 13849-1: 2008 | SIL 2 conforming to ISO 13849-1: 2009/AC | SIL 2 conforming to IEC 60204-1: 2006 | SIL 2 conforming to IEC 60204-1: 2009/A1 | SIL 2 conforming to IEC 60204-1: 2010/AC | SIL 2 conforming to IEC 62061: 2012 |
| Communication interface | Modbus, integrated | SERCOS III, integrated |
| Connector type | RJ45 (CN3) | RJ45 (CN4) |
| Method of access | Slave |
| Transmission rate | 9600 bauds...115200 bauds (automatic detection) for bus length of 100 m |
| Status LED | 1 LED (red) charge | 1 LED (green) RUN | 1 LED (red) error |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE | CULus |
| Type of cooling | Integrated fan |
| Operating position | Vertical |
| Product compatibility | Servo motor BCH2 (130 mm, 1 motor stacks) at 500 W | Servo motor BCH2 (80 mm, 2 motor stacks) at 750 W | Servo motor BCH2 (130 mm, 1 motor stacks) at 600 W |
| Width | 55 mm |
| Height | 150 mm |
| Depth | 146 mm |
| Net weight | 1 kg |
| Supply voltage description | Three phase 220 V AC 50...60 Hz | Single phase 220 V AC 50...60 Hz |
| Drive voltage drop coefficient | 1 |
| Field weakening | False |
| Continuous output current 2 | 4.5 A |
| Switching frequency 2 | 16 kHz |
| Continuous output current 3 | 4.5 A |
| Switching frequency 3 | 16 kHz |
| Communication iinterface | Pulse train output | SERCOS III |
| Emc filter compatibility | Type 022 | Type 020 |
| Electromagnetic compatibility | Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | CE | cULus |
| IP degree of protection | IP20 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3 |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…65 °C |
| Operating altitude | <= 1000 m without derating | > 1000...2000 m 1 % per 100 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 23 cm |
| Package 1 Length | 23.7 cm |
| Package 1 Weight | 1.308 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.22 kg |
