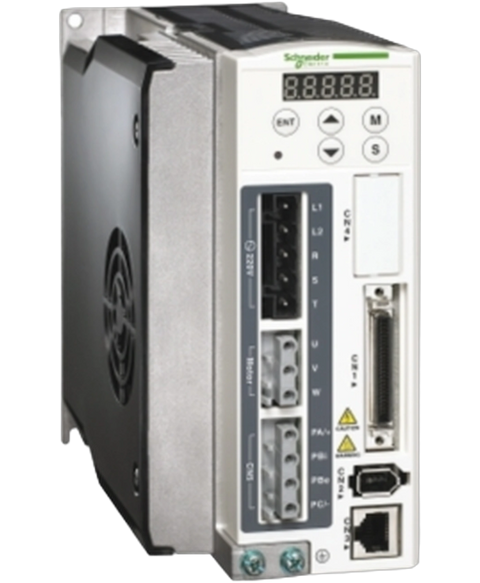

Schneider Electric LXM23DU10M3X
The Schneider Electric LXM23DU10M3X is a motion servo drive, specifically designed for precision control applications. It operates on a single-phase power supply ranging from 200 to 255 V AC and has an output current capability of up to 7.3 A.
This Schneider Electric LXM23DU10M3X is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Servo drives range and is referenced internally as PartLogic SKU PL26805655946.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Modicon |
| Part Number | LXM23DU10M3X |
| EAN | 3606480179143 |
| Weight | 2.31 lbs (1.05 kg) |
| Module Description | Motion Servo Drive |
| Power Supply Voltage | 200 to 255 V AC (Single-phase) |
| Power Supply Frequency | 47.5 to 63 Hz |
| Continuous Output Current | 7.3 A |
| Continuous Power | 1000 W at 220 V |
| Nominal Power | 1 kW at 220 V |
| Maximum Leakage Current | 3.5 mA |
| Communication Interface | Integrated Modbus |
| Connector Type | RJ45 (CN3) for Modbus |
| Physical Interface | 2-wire RS485 multidrop for Modbus |
| Transmission Rate | Configurable |
| Status LED | 1 LED function: charge LED |
| Signaling Function | Servo status and fault codes for five 7-segment display units |
| Brand | Schneider Electric |
