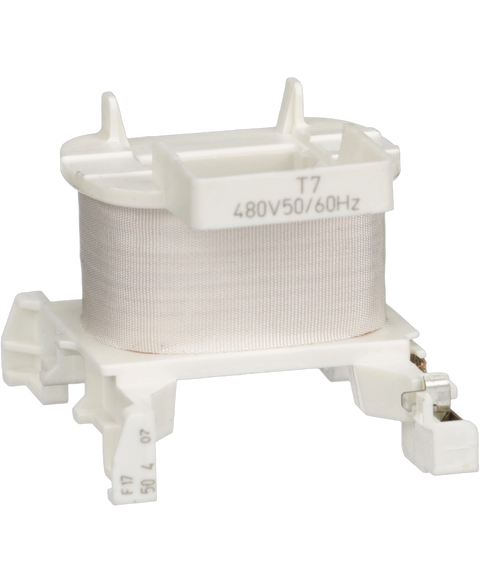

Schneider Electric LXD1T7
Coil, tesys d, for lc1d09 to 38 contactors and cad relays, 480VAC, 50,60Hz, rohs compliant
This Schneider Electric LXD1T7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26805533128.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LXD1 |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 480 V AC 50/60 Hz |
| Average resistance | 2398 Ohm at 20 °C |
| Inductance of closed circuit | 87 H |
| Product compatibility | LC1DT20...DT40 | CAD | LC1D09...D38 |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) | Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) | Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) | 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) | 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Ambient air temperature for operation | -5…60 °C |
| Net weight | 0.07 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 4.5 cm |
| Package 1 Length | 6.4 cm |
| Package 1 Weight | 70.0 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.277 kg |
