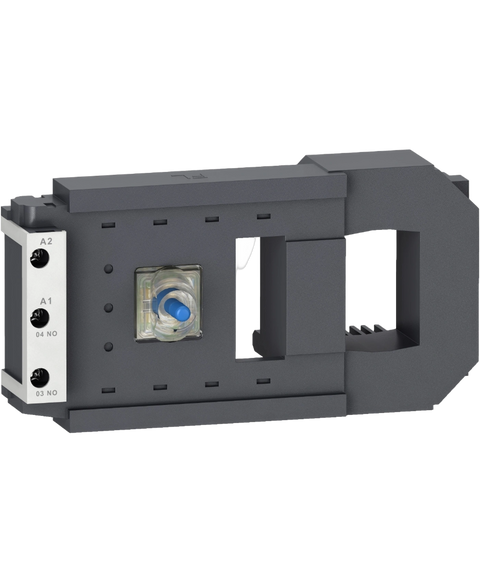

Schneider Electric LX9FG220
Discontinued by manufacturer 09,29,2023, contactor coil, 220-230VAC 40-400Hz, low consumption
This Schneider Electric LX9FG220 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26805563010.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Specific contactor coil |
| Device short name | LX9FG |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F225 | LC1F185 |
| Control circuit type | AC at 40...400 Hz low consumption |
| [Uc] control circuit voltage | 220...230 V AC 40...400 Hz |
| Inductance of closed circuit | 5.84 H |
| Average resistance | 1680 Ohm holding at 20 °C | 42.1 Ohm inrush at 20 °C |
| Operating time | 130 ms opening | 35 ms closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc (at 55 °C) | Drop-out: 0.2...0.55 Uc (at 55 °C) |
| Inrush power in VA | 950…1180 VA 40...400 Hz (at 20 °C) |
| Hold-in power consumption in VA | 8.9…10.9 VA 40...400 Hz (at 20 °C) |
| Heat dissipation | 8…9.8 W |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 0.55 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 17.700 cm |
| Package 1 Weight | 587.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.546 kg |
