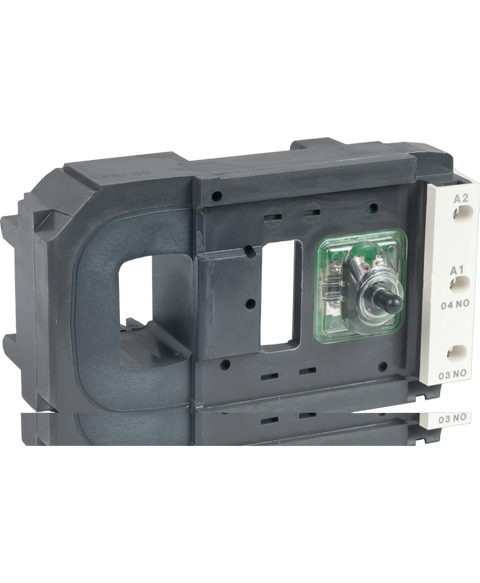

Schneider Electric LX1FJ110
Discontinued by manufacturer 09,29,23, contactor coil, tesys, 110-120VAC, 40-400Hz, without built-in suppressor module, -5 to +55 degrees c
This Schneider Electric LX1FJ110 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26805543009.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1FJ |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F400 |
| Control circuit type | AC at 40...400 Hz |
| [Uc] control circuit voltage | 110...120 V AC 40...400 Hz |
| Inductance of closed circuit | 1.35 H |
| Average resistance | 9.8 Ohm inrush at 20 °C | 230 Ohm holding at 20 °C |
| Operating time | 100...170 ms opening | 40...75 ms closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 1075 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 15 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 14 W at 40...400 Hz |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 1 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 19.0 cm |
| Package 1 Weight | 1.181 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.524 kg |
