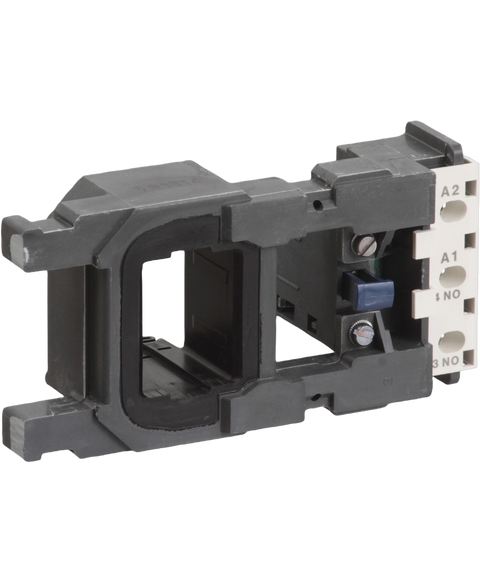

Schneider Electric LX1FG184
Discontinued by manufacturer, contactor coil, tesys f, 220VAC , 60Hz
This Schneider Electric LX1FG184 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26805677947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1FG |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F225 | LC1F185 |
| Control circuit type | AC at 60 Hz |
| [Uc] control circuit voltage | 220 V AC 60 Hz |
| Inductance of closed circuit | 1.8 H |
| Average resistance | 11.1 Ohm at 20 °C |
| Operating time | 20...35 ms closing | 7...15 ms opening |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C) | Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C) |
| Inrush power in VA | 970 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Hold-in power consumption in VA | 66 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 18…24 W at 60 Hz |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 0.55 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 15.8 cm |
| Package 1 Weight | 530 g |
