Schneider Electric LX1D6T6

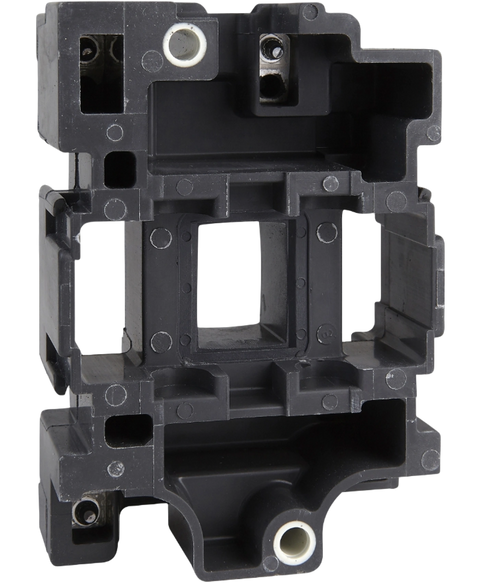

TeSys D - contactor coil - LX1D6 - 480 V AC 60 Hz for 80 & 95 A contactor
This Schneider Electric LX1D6T6 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26801410914.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1D6 |
| Control circuit type | AC at 60 Hz |
| [Uc] control circuit voltage | 480 V AC 60 Hz |
| Average resistance | 480 Ohm at 20 °C |
| Inductance of closed circuit | 23 H |
| Product compatibility | LC1D80 | LC1D95 |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) | Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C) | Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) |
| Inrush power in VA | 220 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 6…10 W at 50/60 Hz |
| Ambient air temperature for operation | -5…60 °C |
| Net weight | 0.28 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 8.900 cm |
| Package 1 Length | 12.800 cm |
| Package 1 Weight | 308 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.229 kg |
