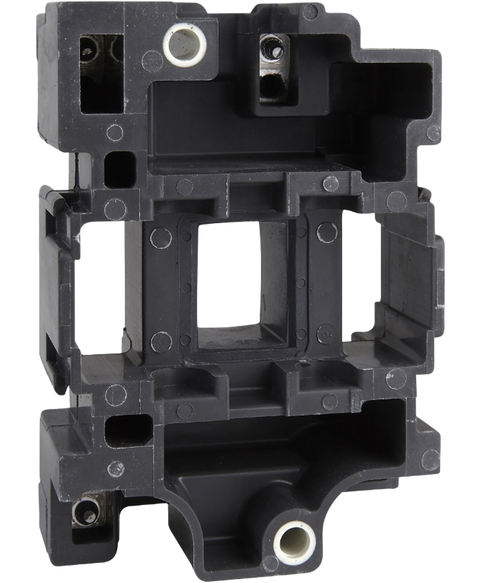

Schneider Electric LX1D6G7
Coil, contactor, 120v; accessory type:coil; for use with:contactors; product range:tesys d series rohs compliant: yes
This Schneider Electric LX1D6G7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26902724743.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1D6 |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Average resistance | 32 Ohm at 20 °C |
| Inductance of closed circuit | 2 H |
| Product compatibility | LC1D40 | LC1D50 | LC1D65...D95 |
| Mechanical durability | 4 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) | Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C) | Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) |
| Inrush power in VA | 245 VA 60 Hz cos phi 0.75 (at 20 °C) | 245 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 26 VA 60 Hz cos phi 0.3 (at 20 °C) | 26 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 6…10 W at 50/60 Hz |
| Ambient air temperature for operation | -5…60 °C |
| Net weight | 0.28 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 315.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.323 kg |
