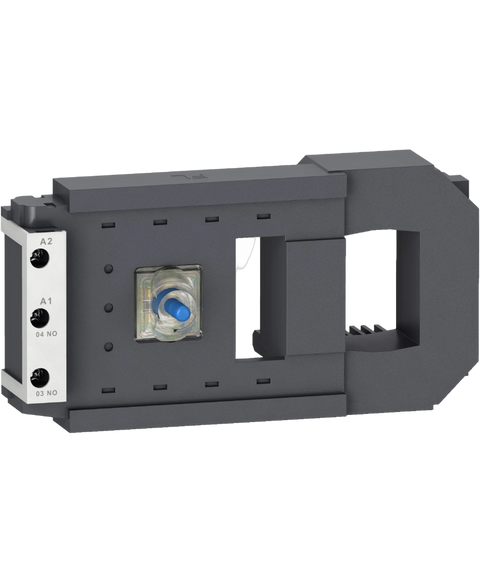

Schneider Electric LX1-FL220
Coil, contactor, 240VAC; accessory type:coil; for use with:contactors; product range:tesys f series rohs compliant: yes
This Schneider Electric LX1-FL220 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26805595755.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1FL |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F630 | LC1F1250 |
| Control circuit type | AC at 40...400 Hz |
| [Uc] control circuit voltage | 220...240 V AC 40...400 Hz |
| Inductance of closed circuit | 3.35 H |
| Average resistance | 25.5 Ohm inrush at 20 °C | 730 Ohm holding at 20 °C |
| Operating time | 100...200 ms opening | 40...80 ms closing |
| Mechanical durability | 5 Mcycles |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C) |
| Inrush power in VA | 1650 VA 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA 40...400 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 20 W at 40...400 Hz |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 1.5 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 11.500 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 1.410 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.170 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 83.036 kg |
