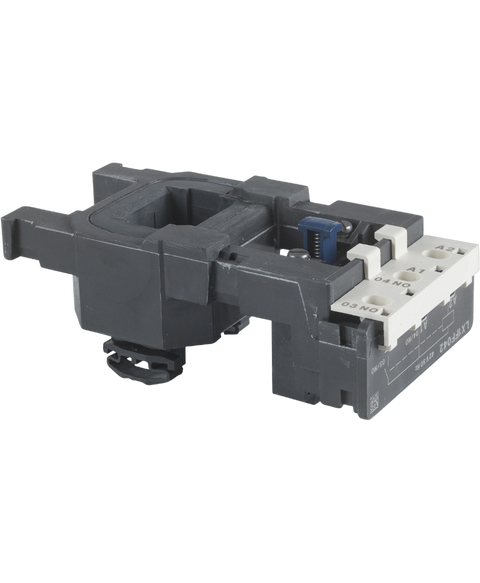

Schneider Electric LX1-FF220
Discontinued by manufacturer 10.08.2021, contactor coil, 220 - 230VAC, 50Hz, 265 - 277VAC, 60Hz, IEC, replacement: lx9ff220
This Schneider Electric LX1-FF220 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors > Coils range and is referenced internally as PartLogic SKU PL26903878302.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1FF |
| Range compatibility | TeSys TeSys F LC1F contactor |
| Product compatibility | LC1F150 | LC1F115 |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220...230 V AC 50 Hz | 265...277 V AC 60 Hz |
| Inductance of closed circuit | 3.44 H |
| Average resistance | 28.1 Ohm at 20 °C |
| Operating time | 23...35 ms closing | 5...15 ms opening |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C) | Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C) |
| Inrush power in VA | 550 VA 50 Hz cos phi 0.3 (at 20 °C) | 660 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Hold-in power consumption in VA | 45 VA 50 Hz cos phi 0.3 (at 20 °C) | 55 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 12…16 W at 50/60 Hz |
| Ambient air temperature for operation | -5…55 °C |
| Net weight | 0.43 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 16 cm |
| Package 1 Weight | 494 g |
