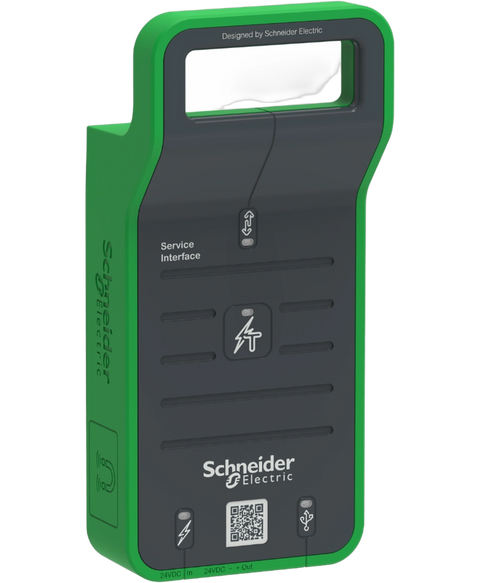

Schneider Electric LV485500
Service interface kit, pact series circuit breakers, replaces trv00910
This Schneider Electric LV485500 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805596764.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Testing kit |
| Accessory / separate part category | Maintenance accessory |
| Range compatibility | Masterpact MasterPact NT | Masterpact MasterPact NW | EasyPact EasyPact MVS | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 |
| Provided equipment | 1 power supply | 1 USB cable | 3 test cables |
| [Ue] rated operational voltage | 115/230 V AC +/- 10 % 47...63 Hz |
| Response time | 0...7500 s +/- 0.1 % |
| [Uimp] rated impulse withstand voltage | 12 kV |
| IP degree of protection | IP20 |
| Height | 106 mm |
| Width | 451 mm |
| Depth | 358 mm |
| Net weight | 2.8 kg |
| Product certifications | CE | UL |
| Standards | IEC 61010-1 | IEC 61010-2-030 | UL 61010-1 | CSA C22.2 No 61010-1 | EN 60068-2-32 |
| Overvoltage category | II |
| Electromagnetic compatibility | Conducted RF disturbances conforming to EN 55011 | Emission tests conforming to EN 55032 | Immunity for industrial environments conforming to IEC 61000-6-2 | Emission standard for industrial environments conforming to IEC 61000-6-4 | Limits for harmonic current emissions conforming to IEC 61000-3-2 | Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % at 55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 15.000 cm |
| Package 1 Length | 47.000 cm |
| Package 1 Weight | 3.044 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 71.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 28.000 kg |
