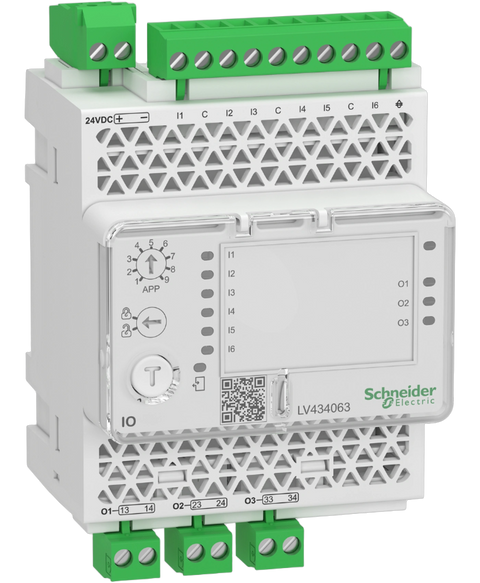

Schneider Electric LV434063
I,O application module, circuit breaker accessory, 24VDC, 165mA, 0-20 seconds, 6 digital , 1 analog inputs, 3 digital outputs
This Schneider Electric LV434063 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26899487837.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device short name | I/O |
| Product or component type | I/O module |
| Range compatibility | Masterpact MasterPact MTZ | Masterpact MasterPact NT | Masterpact MasterPact NW | ComPact ComPact NSX | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 | PowerPact PowerPact J | PowerPact PowerPact L | PowerPact PowerPact H | PowerPact PowerPact P | PowerPact PowerPact R |
| Product name | Enerlin'X IO |
| Communication network type | Universal Logic Plug on 2 RJ45 connectors |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Current consumption | 165 mA |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 | Immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3 | Surge immunity test conforming to EN/IEC 61000-4-5 |
| Number of inputs | 6 digital | 1 analog |
| Input type | Digital at state 1: 19.8…25.2 V - DC - 6.1…8.8 mA | Digital at state 0: 0…19.8 V - DC - 0 mA |
| Number of outputs | 3 digital |
| Output type | Digital: 250 V - AC - 5 A |
| Cable length | 10 m |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Control type | By software |
| Time delay | 0...20 s |
| vibration frequency | 5…8.4 Hz |
| Connections - terminals | Screw terminal block |
| Product certifications | FCC | GOST | CE | cULus |
| Standards | IEC 60947-6-2 | UL 60950 | IEC 60950 | UL 508 |
| Depth | 70.6 mm |
| Height | 116 mm |
| Width | 71.7 mm |
| Net weight | 229.5 g |
| Relative humidity | 5…85 % |
| IP degree of protection | IP2X connectors: | IP4X front panel: | IP3x other parts: |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL |
| Shock resistance | 1000 m/s² |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 270.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.210 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 63.628 kg |
