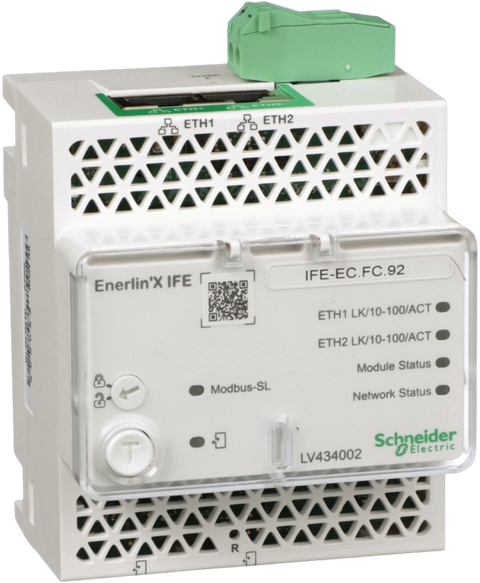

Schneider Electric LV434002
Enerlin'X IFE switchboard server, Ethernet interface and gateway
This Schneider Electric LV434002 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805675218.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ComPact NSX100...250 | ComPact NSX400...630 | ComPact NS630b...1600 | ComPact NS1600b...3200 |
| Device short name | IFE |
| Product or component type | Interface module |
| Range compatibility | Masterpact MasterPact MTZ | Masterpact MasterPact NT | Masterpact MasterPact NW | ComPact ComPact NSX | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 | PowerPact PowerPact J | PowerPact PowerPact L | PowerPact PowerPact H | PowerPact PowerPact P | PowerPact PowerPact R |
| Communication network type | Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45 | Universal Logic Plug on 2-port RJ45 | Modbus TCP/IP, Modbus TCP master9.6...38.4 kbauds |
| Communication gateway | Ethernet TCP/IP to Modbus |
| Web server | Embedded HTTP server |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Control type | By software |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Maximum supply current | 3 A |
| Current consumption | 120 mA |
| Connections - terminals | RJ45 connector |
| Product certifications | CE | GOST | cULus | FCC |
| Standards | IEC 60947-6-2 | UL 508 | UL 60950 | IEC 60950 |
| Height | 105 mm |
| Width | 72 mm |
| Depth | 71 mm |
| Net weight | 182.5 g |
| Accessory / separate part category | Spare part for Compact NS630b...1600 | Spare part for Compact NS1600b...3200 |
| IP degree of protection | Connectors: IP2X | Other parts: IP3x | Front panel: IP4X |
| Relative humidity | 5…85 % |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…70 °C |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL 94 | V0 conforming to IEC 60947-1 | V0 conforming to IEC 60695-2-11 |
| Shock resistance | 1000 m/s² |
| Vibration frequency | 5…8.4 Hz |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.100 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 257.700 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.609 kg |
