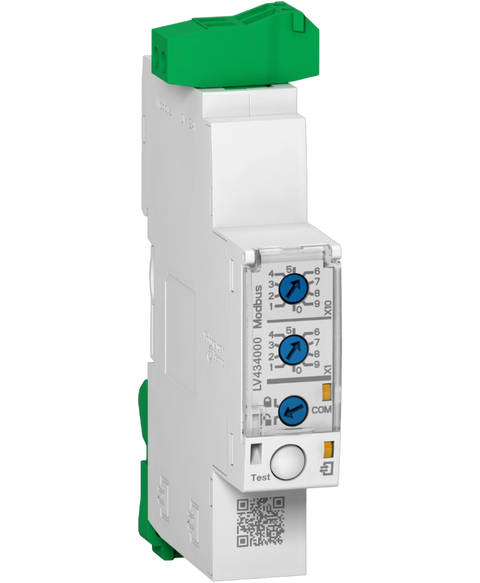

Schneider Electric LV434000
Electric interface module, input: 24VDC, output: 24VDC , 3A, 30mA, RJ45 connector, screw type terminals, -40 to +85 degrees c, IP20,30
This Schneider Electric LV434000 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805682071.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ComPact NSX100...250 | ComPact NSX400...630 | ComPact NS630b...1600 | ComPact NS1600b...3200 |
| Device short name | IFM |
| Product or component type | Interface module |
| Range compatibility | Masterpact MasterPact MTZ | Masterpact MasterPact NT | Masterpact MasterPact NW | ComPact ComPact NSX | ComPact ComPact NS630b...1600 | ComPact ComPact NS1600b...3200 | PowerPact PowerPact J | PowerPact PowerPact L | PowerPact PowerPact H | PowerPact PowerPact P | PowerPact PowerPact R |
| Communication network type | Universal Logic Plug on 2-port RJ45 | Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Accuracy class | Class 2 power supply |
| Input voltage | 24 V DC - 20...10 % |
| Output voltage | 24 V DC |
| Output current | 3 A |
| Current consumption | 30 mA 24 V DC room temperature |
| Power consumption in W | 1.635 W |
| Memory type | EEPROM data storage |
| Connections - terminals | RJ45 connector | Screw type terminals |
| Product certifications | EAC | cULus | CE | FCC |
| Standards | CISPR 22 | UL 61010 | UL 60950 | CISPR 24 | CISPR 11 | IEC 60950 | IACS E10 |
| Height | 109 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Net weight | 120 g |
| IP degree of protection | Connectors: IP20 | Other parts: IP30 |
| Relative humidity | 5…85 % at 55 °C without condensation |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…70 °C |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL 94 |
| Shock resistance | +/- 15 gn 11 ms conforming to EN/IEC 60068-2-27 |
| Vibration frequency | 5…8.4 Hz conforming to EN/IEC 60068-2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 117.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 54 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.772 kg |
