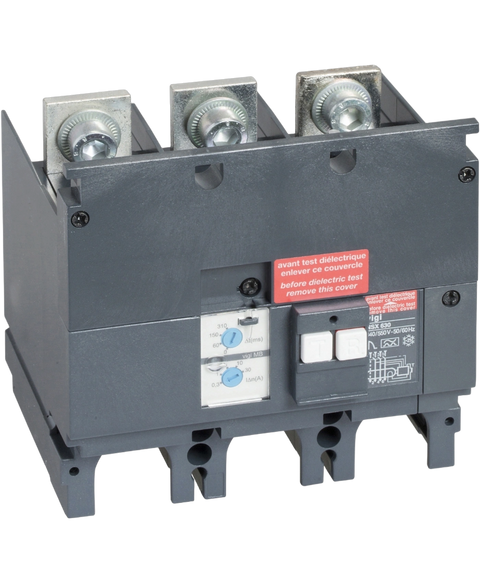

Schneider Electric LV432455
Vigi add-on protection module, Compact NSX 400,630, EasyPact CVS 400,630, MB type, 200 to 440 VAC, 300 mA to 30 A, 3P
This Schneider Electric LV432455 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805670983.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | ComPact NSX400...630 |
| Range | ComPact |
| Product or component type | Vigi add-on |
| Device application | Wiring |
| Range compatibility | ComPact ComPact NSX400 circuit breaker | ComPact ComPact NSX630 circuit breaker | EasyPact EasyPact CVS400 circuit breaker | EasyPact EasyPact CVS630 circuit breaker |
| Poles description | 3P |
| [In] rated current | 400 A | 630 A |
| Earth-leakage add-on module name | MB |
| Earth-leakage protection class | Class A |
| Residual earth-leakage sensitity adjustment type | Adjustable 5 settings |
| Earth-leakage sensitivity | 0.3 A | 1 A | 3 A | 10 A | 30 A |
| Residual earth-leakage time delay adjustment type | Adjustable 4 settings |
| [Δt] residual earth-leakage time delay adjustment | 60 ms | 150 ms | 0 ms | 310 ms |
| Network type | AC |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 200...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Earth-leakage protection | With |
| Maximum breaking time | 800 ms |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Standards | IEC 60947-2 |
