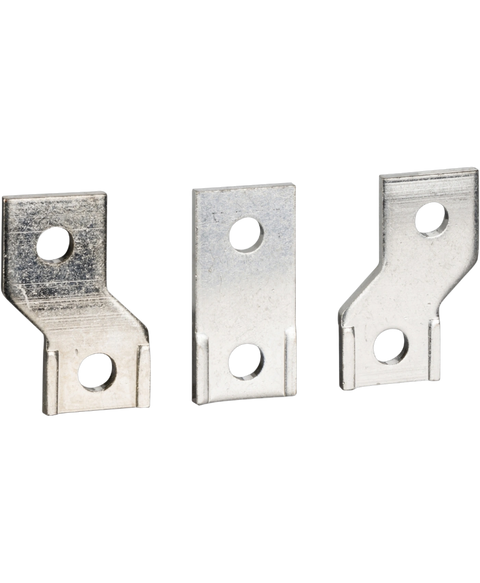

Schneider Electric LV431563
connection accessories, Compact NSX 100,160,250, EasyPact CVS 100,160,250, spreaders, 45 mm pitch, flat connection, 3 poles
This Schneider Electric LV431563 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805543882.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Spreader |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100 | ComPacT ComPacT NSX160 | ComPacT ComPacT NSX250 | ComPacT ComPacT NSX DC | ComPact ComPact NSX100 | ComPact ComPact NSX160 | ComPact ComPact NSX250 | ComPact Compact NSX100 DC | ComPact Compact NSX160 DC | ComPact Compact NSX250 DC | EasyPact EasyPact CVS100 | EasyPact EasyPact CVS160 | EasyPact EasyPact CVS250 | ComPact INS250 | ComPact Compact INV100...250 |
| Poles description | 3P |
| Quantity per set | 3 |
| Mounting position | Straight |
| [In] rated current | 250 A |
| Connection pitch | 45 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 207.200 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 22.500 cm |
| Package 2 Weight | 899.000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 13.192 kg |
