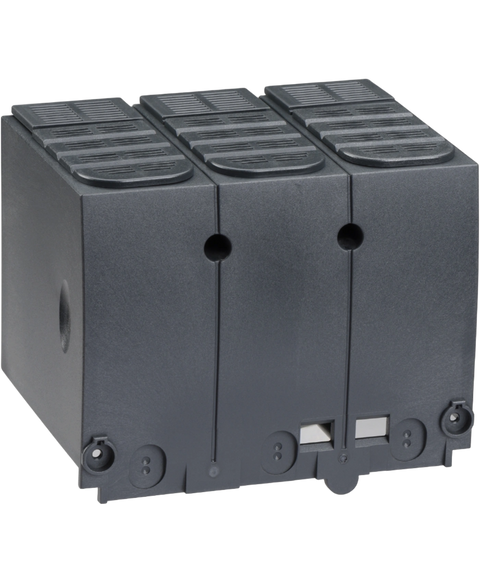

Schneider Electric LV429517
long terminal shield, Compact NSX, EasyPact CVS, 3 poles, pitch 35 mm
This Schneider Electric LV429517 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805539190.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Product or component type | Long terminal shield |
| Range compatibility | ComPacT ComPacT NSX100 | ComPacT ComPacT NSX160 | ComPacT ComPacT NSX250 | ComPact ComPact NSX100 | ComPact ComPact NSX160 | ComPact ComPact NSX250 | ComPacT ComPacT NSX DC NSX100 DC | ComPacT ComPacT NSX DC NSX160 DC | ComPacT ComPacT NSX DC NSX250 DC | ComPact Compact NSX100 DC | ComPact Compact NSX160 DC | ComPact Compact NSX250 DC | EasyPact EasyPact CVS100 | EasyPact EasyPact CVS160 | EasyPact EasyPact CVS250 |
| Accessory / separate part type | Insulation accessories |
| Poles description | 3P |
| Quantity per set | 1 |
| Connection pitch | 35 mm |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Product compatibility | Circuit-breaker | Plug-in base |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 151.200 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 56 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.173 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 224 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 47.891 kg |
