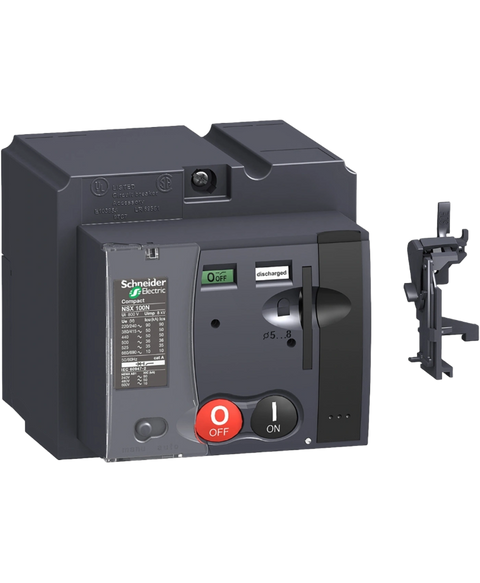

Schneider Electric LV429434
motor mechanism, MT 100,160, Compact NSX100,160, PowerPact Multistandard H, 220 to 240 VAC 50,60 Hz, 208 to 277 VAC 60 Hz
This Schneider Electric LV429434 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26801407059.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Device short name | MT250 |
| Product or component type | Motor mechanism |
| Device application | Automatic spring charging |
| Range compatibility | ComPacT NSX100 | ComPacT NSX160 | ComPacT NSX100 DC | ComPacT NSX160 DC |
| Control type | Standard |
| [Uc] control circuit voltage | 208...277 V AC 60 Hz | 220...240 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current | 160 A | 100 A |
| Control signal type | Impulse | Maintained |
| circuit breaker response time | < 700 ms open | < 80 ms closed |
| Maximum operating frequency | 4 per minute |
| Maximum power consumption in VA | 500 VA closing | 500 VA opening |
| Provided equipment | SDE adaptor |
| Locking options description | Padlocking in OFF position | 1 to 3 padlocks Ø 5 to Ø 8 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.700 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 17.000 cm |
| Package 1 Weight | 1.380 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 21.400 kg |
