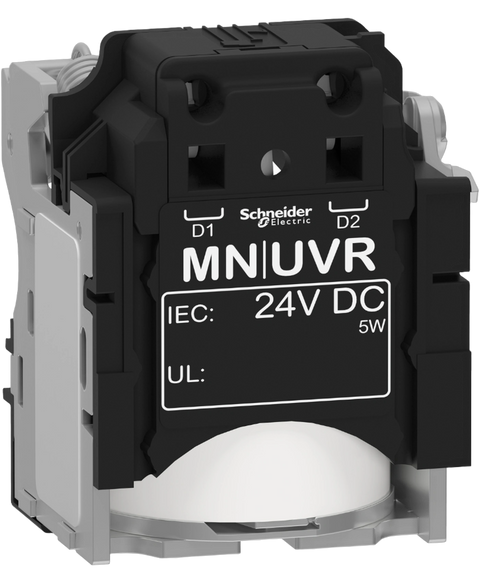

Schneider Electric LV429410
MN undervoltage release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 24 VDC
This Schneider Electric LV429410 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805677102.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | ComPacT |
| Range of product | ComPact NSX100...250 | ComPacT NSX100...250 | ComPact NSX400...630 | ComPacT NSX400...630 | ComPact NSX100...250 DC | ComPacT NSX100...250 DC | ComPact NSX100...250 DC PV | ComPacT NSX100...250 DC PV | ComPact NSX400...630 DC | ComPacT NSX400...630 DC | ComPact NSX400...630 DC PV | ComPacT NSX400...630 DC PV | Galaxy VS |
| Device short name | MN |
| Product or component type | Voltage release |
| Device application | Control |
| Range compatibility | Galaxy VS | Galaxy VX |
| Voltage release type | Opening coil | Undervoltage release |
| [Uc] control circuit voltage | 24 V DC |
| Operating threshold | 0.35...0.7 x Un opening | 0.85 x Un closing |
| Response time | 50 ms |
| Supply holding power | 5 W |
| Supply inrush power | 10 W |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length | 7 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 4.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 124.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.000 cm |
| Package 2 Width | 14.800 cm |
| Package 2 Length | 22.500 cm |
| Package 2 Weight | 1.337 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 8.492 kg |
