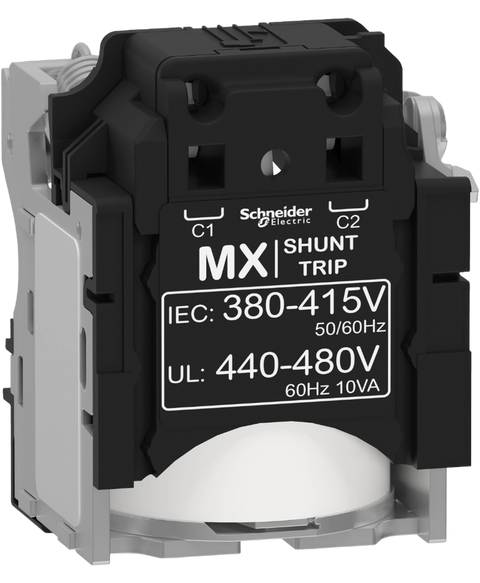

Schneider Electric LV429388
MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 380 to 415 VAC 50,60 Hz, 440 to 480 VAC 60 Hz
This Schneider Electric LV429388 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805544800.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | ComPacT |
| Range of product | ComPact NSX100...250 | ComPacT NSX100...250 | ComPact NSX400...630 | ComPacT NSX400...630 | ComPact NSX100...250 DC | ComPacT NSX100...250 DC | ComPact NSX100...250 DC PV | ComPacT NSX100...250 DC PV | ComPact NSX400...630 DC | ComPacT NSX400...630 DC | ComPact NSX400...630 DC PV | ComPacT NSX400...630 DC PV |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil | Shunt trip release |
| [Uc] control circuit voltage | 380...415 V AC 50 Hz | 440...480 V AC 60 Hz |
| Range compatibility | ComPacT ComPacT NSX | ComPacT ComPacT NSX DC | ComPact ComPact NSX | ComPact ComPact NSX DC | EasyPact EasyPact CVS | PowerPact PowerPact Multistandard |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms |
| Control signal type | Maintained | Impulse |
| Impulse duration | >= 20 ms |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length | 7 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 4.6 cm |
| Package 1 Length | 6.0 cm |
| Package 1 Weight | 114.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.0 cm |
| Package 2 Width | 10.5 cm |
| Package 2 Length | 23.6 cm |
| Package 2 Weight | 1.189 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 7.515 kg |
