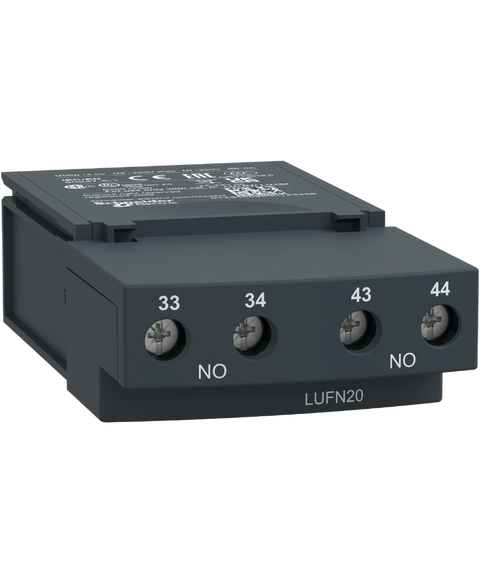

Schneider Electric LUFN20
auxiliary contacts LUF - 2NO
This Schneider Electric LUFN20 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters range and is referenced internally as PartLogic SKU PL26902165805.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LUFN |
| Product or component type | Auxiliary contact |
| Auxiliary contact composition | 2 NO |
| [Ue] rated operational voltage | <= 250 V AC | <= 250 V DC |
| [Ui] rated insulation voltage | 250 V conforming to CSA | 250 V conforming to IEC 60947-5-1 | 250 V conforming to UL |
| [Ith] conventional free air thermal current | 5 A |
| Minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net weight | 0.05 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.5 cm |
| Package 1 Width | 3.3 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 47.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.162 kg |
