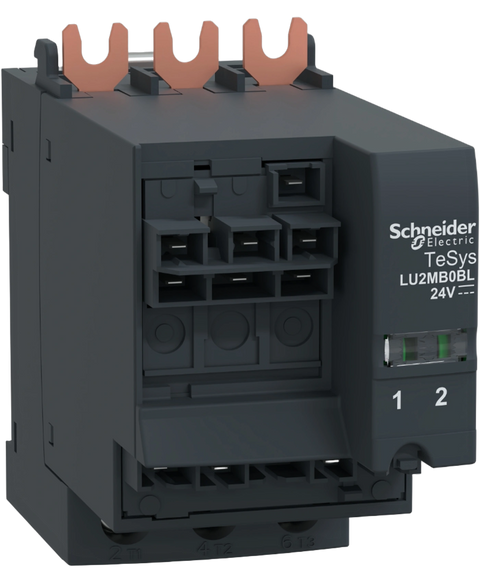

Schneider Electric LU2MB0BL
Reverser block, lu2m, 32A, 24VDC, 690VAC, 40-60Hz, direct mounting, plug-in, IP20,40
This Schneider Electric LU2MB0BL is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor starters range and is referenced internally as PartLogic SKU PL26805560037.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$333.11
(inc. GST)
In Stock
| Range | TeSys |
| Device short name | LU2MB |
| Product or component type | Reverser block |
| Device mounting | Direct mounting |
| Device application | Motor control |
| [Ie] rated operational current | 38 A |
| [Uc] control circuit voltage | 24 V DC |
| Current consumption | 120 mA at 24 V DC I maximum while closing | 120 mA at 24 V DC I rms sealed |
| [Ue] rated operational voltage | 690 V AC power circuit |
| Network frequency | 40...60 Hz |
| Inrush restraint duration | 25 ms AC | 15 ms DC |
| Operating time | 150 ms with change of direction | 75 ms without change of direction |
| Standards | EN 60947-6-2 | IEC 60947-6-2 | UL 60947-4-1, with phase barrier | CSA C22.2 No 60947-4-1, with phase barrier |
| Product certifications | CE | UL | CSA | CCC | EAC | ASEFA | ATEX | Marine |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-6-2 | 600 V conforming to UL 60947-4-1 | 600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| Fixing mode | Plug-in |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid | Control circuit: screw clamp terminals 2 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 0.75…1.5 mm² (external diameter: 3 mm) rigid | Power circuit: screw clamp terminals 1 cable(s) 1…10 mm² (external diameter: 4 mm) rigid | Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end | Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm² (external diameter: 4 mm) flexible without cable end | Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) flexible with cable end | Power circuit: screw clamp terminals 2 cable(s) 1…6 mm² (external diameter: 4 mm) rigid | Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm² (external diameter: 4 mm) flexible without cable end |
| Tightening torque | Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm | Control circuit: 0.8…1.2 N.m Philips No 2 screwdriver 5 mm | Power circuit: 1.9…2.5 N.m flat screwdriver 6 mm | Power circuit: 1.9…2.5 N.m Philips No 2 screwdriver 6 mm |
| Width | 45 mm |
| Height | 80 mm |
| Depth | 105 mm |
| Net weight | 0.4 kg |
| Compatibility code | LU2MB |
| IP degree of protection | IP20 conforming to IEC 60947-1 (front panel and wired terminals) | IP20 conforming to IEC 60947-1 (other faces) | IP40 conforming to IEC 60947-1 (front panel outside connection zone) |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -25…60 °C with LUCM | -25…70 °C with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage | -40…85 °C |
| Fire resistance | 960 °C parts supporting live components conforming to IEC 60695-2-12 | 650 °C conforming to IEC 60695-2-12 |
| Operating altitude | 2000 m |
| Shock resistance | 10 gn power poles open conforming to IEC 60068-2-27 | 15 gn power poles closed conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 5…300 Hz) power poles open conforming to IEC 60068-2-27 | 4 gn (f= 5…300 Hz) power poles closed conforming to IEC 60068-2-27 |
| Resistance to electrostatic discharge | 8 kV level 3, in open air conforming to IEC 61000-4-2 | 8 kV level 4, on contact conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to fast transients | 2 kV class 3 serial link conforming to IEC 61000-4-4 | 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| Immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 5.700 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 402.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.108 kg |
