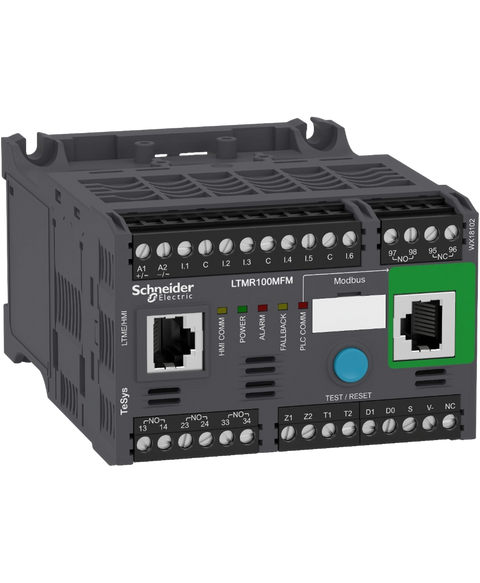

Schneider Electric LTMR100MFM
The Schneider Electric LTMR100MFM functions as a motor management controller designed to integrate seamlessly into various automation systems. This model supports a communication protocol of Modbus, providing efficient data transfer and control capabilities.
This Schneider Electric LTMR100MFM is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor management relays range and is referenced internally as PartLogic SKU PL26801445509.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$749.88
(inc. GST)
In Stock
| Range | TeSys |
| Product name | TeSys T |
| Device short name | LTMR |
| Product or component type | Motor controller |
| Device application | Equipment monitoring and control |
| Measurement current | 5…100 A |
| [Us] rated supply voltage | 100...240 V AC 50/60 Hz |
| Current consumption | 8...62.8 mA |
| Supply voltage limits | 93.5…264 V AC |
| Communication port protocol | Modbus |
| Bus type | Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs | Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs |
| [Ui] rated insulation voltage | 690 V conforming to EN/IEC 60947-1 | 690 V conforming to CSA C22.2 No 14 | 690 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1 | 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1 | 0.8 kV communication circuit conforming to EN/IEC 60947-4-1 |
| Short-circuit withstand | 100 kA conforming to EN/IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for output | 0.5 A gG for control circuit |
| Protection type | Load fluctuation | Earth-leakage protection | Overload (long time) | Overload | Locked rotor | Thermal protection | Thermal overload protection | Power factor variation | Reverse polarity protection | Phase failure | Phase unbalance |
| Network and machine diagnosis type | Motor control command recording | Starting current and time | Trip history information | Phase fault and earth fault trip counters | Running hours counter/operating time | Remaining operating time before overload tripping | Fault recording | Trip context information | Event recording | Waiting time after overload tripping |
| Logic input number | 6 |
| Input current | 3.1 mA at 100 V | 7.5 mA at 240 V |
| Current state 0 guaranteed | Logic input: 0...40 V and <= 15 mA for 25 ms |
| Current state 1 guaranteed | Logic input: 79...264 V and >= 2 mA for 25 ms |
| maximum output switching frequency | 2 Hz |
| Load current | 5 A at 250 V AC for logic output | 5 A at 30 V DC for logic output |
| Permissible power | 480 VA (AC-15), Ie = 2 A, 500000 cycles (output) | 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output) |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | 1 NO + 1 NC fault signal | 3 NO |
| Metering type | Temperature | Earth-fault current | Average current Iavg | Imbalance current | Phase current I1, I2, I3 RMS |
| Measurement accuracy | 5...15 % earth fault current internal measurement | 1 % voltage (100...830 V) | 3 % power factor | 5 % earth fault current external measurement | +/- 30 min/year internal clock | 0,02 temperature | 5 % active and reactive power | 0,02 current |
| Overvoltage category | III |
| Connection pitch | 5.08 mm |
| Connections - terminals | Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end | Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end | Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end | Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end |
| Tightening torque | Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm |
| Pollution degree | 3 |
| Electromagnetic compatibility | Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 | Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 | Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 | Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 | Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 | Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 | Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 | Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 | Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 | Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 | Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 | Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 | Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 |
| Width | 91 mm |
| Height | 61 mm |
| Depth | 122.5 mm |
| Net weight | 0.53 kg |
| Web services | Web server |
| Compatibility code | LTMR |
| Standards | IACS E10 | IEC 60947-4-1 | UL 508 | EN 60947-4-1 | CSA C22.2 No 14 |
| Product certifications | LROS (Lloyds register of shipping) | UL | ABS | ATEX | EAC | CCC | BV | RINA | DNV | C-Tick | RMRoS | CSA | GL | NOM | KERI |
| Protective treatment | 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 | 48 h conforming to EN/IEC 60070-2-11 | TH conforming to EN/IEC 60068 |
| Fire resistance | 650 °C conforming to EN/IEC 60695-2-12 | 960 °C conforming to UL 94 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Operating altitude | <= 2000 m without derating |
| Mechanical robustness | Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 | Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 | Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.2 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 13.6 cm |
| Package 1 Weight | 536.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.586 kg |
