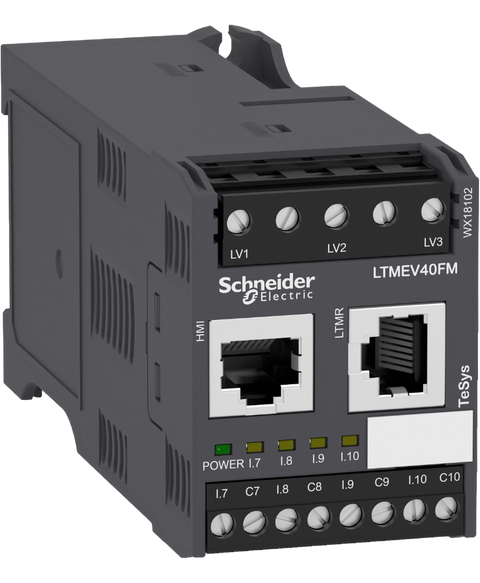

Schneider Electric LTMEV40FM
The LTMEV40FM from Schneider Electric is an extension module designed for use in conjunction with the TeSys series. It is rated for an insulation voltage of up to 690 V and can withstand impulse voltages of 4 kV to 6 kV.
This Schneider Electric LTMEV40FM is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor management relays range and is referenced internally as PartLogic SKU PL26805584721.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$262.23
(inc. GST)
In Stock
| Range | TeSys |
| Product name | TeSys T |
| Device short name | LTME |
| Product or component type | Extension module |
| Device application | Equipment monitoring and control |
| Range compatibility | TeSys TeSys T LTMR motor controller |
| Supply | Via the controller |
| [Ui] rated insulation voltage | 690 V conforming to EN/IEC 60947-1 | 690 V conforming to CSA C22.2 No 14 | 690 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage | 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1 | 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1 |
| Logic input number | 4 |
| Input current | 3.1 mA at 100 V | 7.5 mA at 240 V |
| Current state 0 guaranteed | Logic input: 0...40 V and 2...15 mA for 25 ms |
| Current state 1 guaranteed | Logic input: 79...264 V and <= 15 mA for 25 ms |
| maximum output switching frequency | 2 Hz |
| maximum operating rate | 1800 cyc/h |
| Contacts type and composition | Without |
| Metering type | Imbalance voltage | Active power P, P1, P2, P3 | Calculated active and reactive energy (+/- W.h, +/- VAR.h) | Voltage U21, U32, U13, V1, V2, V3 | Reactive power Q, Q1, Q2, Q3 | Frequency | Power factor |
| Measurement accuracy | 1 % voltage (100...830 V) | 3 % power factor | 5 % active and reactive power |
| Overvoltage category | III |
| Connection pitch | 5.08 mm |
| Connections - terminals | Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible with cable end | Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24...AWG 14) solid without cable end | Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) flexible with cable end | Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24...AWG 14) flexible without cable end | Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24...AWG 14) solid without cable end |
| Tightening torque | Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm |
| Pollution degree | 3 |
| Electromagnetic compatibility | Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 | Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 | Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 | Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 | Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 | Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 | Voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 | Voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 | Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 |
| Width | 45 mm |
| Height | 61 mm |
| Depth | 120.7 mm |
| Net weight | 0.21 kg |
| Compatibility code | LTME |
| Standards | CSA C22.2 No 14 | IACS E10 | IEC 60947-4-1 | UL 508 | EN 60947-4-1 |
| Product certifications | LROS (Lloyds register of shipping) | ATEX | NOM | EAC | RMRoS | GL | UL | DNV | BV | RINA | KERI | C-Tick | CSA | CCC | ABS |
| IP degree of protection | IP20 |
| Protective treatment | 12 x 24 hour cycles conforming to EN/IEC 60068-2-30 | 48 h conforming to EN/IEC 60070-2-11 | TH conforming to EN/IEC 60068 |
| Fire resistance | 650 °C conforming to EN/IEC 60695-2-12 | 960 °C conforming to UL 94 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Operating altitude | <= 2000 m without derating |
| Mechanical robustness | Shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 | Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 | Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 13.600 cm |
| Package 1 Weight | 202.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.385 kg |
