Schneider Electric LTMCU

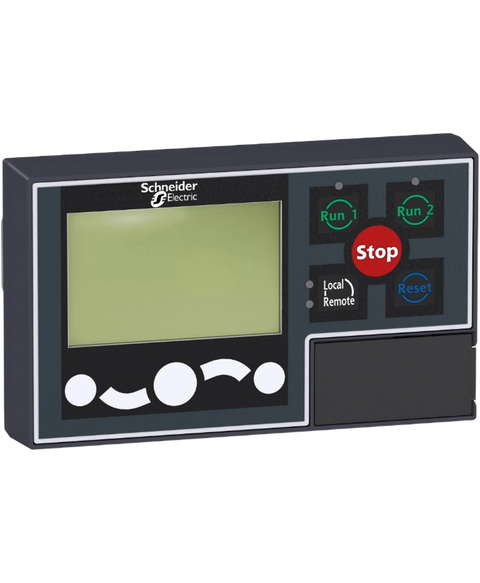

TeSys T Operator control unit for LTM R controller
This Schneider Electric LTMCU is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor management relays range and is referenced internally as PartLogic SKU PL26805526798.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LTMCU |
| Product or component type | Operator control unit |
| Range compatibility | TeSys T LTMR motor controller |
| Display type | Backlit LCD |
| Local signalling | 4 LEDs |
| local control | 10 push-button |
| Device connection | Connection to a LTM R controller, RJ45 connector on rear | Connection to a PC, RJ45 connector on front |
| Supply | Via the controller |
| Maximum supply current | 140 mA |
| Power dissipation | 1 W |
| Standards | UL 60947-4-1A | CSA C22.2 No 60947-4-1 | EN/IEC 61131-2 |
| Product certifications | C-Tick | EAC | CSA | NOM | UL | CE |
| Electromagnetic compatibility | Electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 | Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 | Conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 | Surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 | Fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4 |
| IP degree of protection | IP54 (front) conforming to EN/IEC 60947-4-1 | IP20 (rear) conforming to EN/IEC 60947-4-1 |
| Mounting mode | Flush-mounted |
| Width | 117 mm |
| Height | 70 mm |
| Depth | 50 mm |
| Net weight | 0.4 kg |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 15…95 % |
| Protective treatment | TC 12 humidity cycles at 55 °C conforming to EN/IEC 60068-2-30 |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27 | Vibrations: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6 |
| Fire resistance | 650 °C conforming to EN/IEC 60947-1 |
| Flame retardance | V2 conforming to UL 94 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 13.500 cm |
| Package 1 Weight | 264.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.108 kg |
