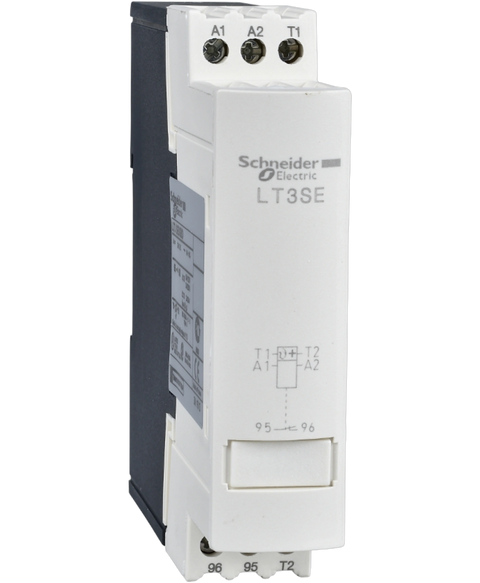

Schneider Electric LT3SE00BD
Probe relay, tesys lt3, automatic reset, 0 - 6 probes, 5A, 24VDC control circuit, 250VAC rated, 50,60Hz, 1 NC, 1W, 2.5 kv, -25 to +60 degrees c, IP20
This Schneider Electric LT3SE00BD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor management relays range and is referenced internally as PartLogic SKU PL26805539394.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | LT3 |
| Device short name | LT3SE |
| Product or component type | Thermistor protection units |
| [Uc] control circuit voltage | 24 V DC |
| Reset | Automatic reset |
| Control circuit voltage limits | 0.8...1.25 Uc |
| Contacts type and composition | 1 NC single voltage |
| [Ith] conventional free air thermal current | 5 A for output control relay |
| [Ui] rated insulation voltage | Output control relay: 500 V AC |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz for output control relay |
| Signalling function | Without |
| Control type | Automatic reset |
| Probe interchangeability | Label mark A conforming to IEC 60034-11 |
| Hold-in power consumption in W | 1 W |
| Hold-in power consumption in VA | 2.5 VA |
| Resistance | 1500…1650 Ohm reset | 2700…3100 Ohm tripping |
| Number of probes | 0…6 |
| Input voltage | < 2.5 V (1500 Ohm) for probe | < 7.5 V (4000 Ohm) for probe conforming to IEC 60034-11 |
| Maximum short circuit detection resistance | 20 Ohm |
| Condition of use | Connection of probes 400 m >1 mm² | Connection of probes 300 m >0.75 mm² |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Rated power in VA | 100 VA at 220 V - electrical durability: 500000 cycles |
| Breaking capacity | 2 A at 24 V DC DC-13 | 3 A at 250 V AC AC-16 | 6 A at 120 V AC AC-16 |
| Connections - terminals | Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²flexible with cable end | Power circuit: cage type connector 1 cable(s) 0.75…2.5 mm²solid with cable end | Power circuit: cage type connector 1 cable(s) 1…2.5 mm²flexible without cable end | Power circuit: cage type connector 1 cable(s) 1…2.5 mm²solid without cable end | Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²flexible with cable end | Power circuit: cage type connector 2 cable(s) 0.75…2.5 mm²solid with cable end | Power circuit: cage type connector 2 cable(s) 1…2.5 mm²flexible without cable end | Power circuit: cage type connector 2 cable(s) 1…2.5 mm²solid without cable end |
| Tightening torque | 0.8 N.m |
| Height | 100 mm |
| Width | 22.5 mm |
| Depth | 100 mm |
| Net weight | 0.22 kg |
| Standards | IEC 60947-8 | IEC 60034-11 | VDE 0660 |
| IP degree of protection | IP20 conforming to IEC 60529 | IP20 conforming to VDE 0106 |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C conforming to IEC 60068-2-2 | -40…85 °C conforming to IEC 60068-2-2 |
| Operating altitude | <= 1500 m without derating in temperature | > 1500...3000 m with derating in temperature |
| Vibration resistance | 1 gn 25...150 Hz conforming to IEC 60068-2-6 | 2.5 gn 2...25 Hz conforming to IEC 60068-2-6 |
| Shock resistance | 5 gn 11 ms conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2 | Resistance to fast transient level 3 conforming to IEC 61000-4-4 | Surge resistance 1.2/50-8/20 level 4 conforming to IEC 61000-4-5 | Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 | Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.3 cm |
| Package 1 Width | 10.3 cm |
| Package 1 Length | 2.5 cm |
| Package 1 Weight | 117.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.523 kg |
