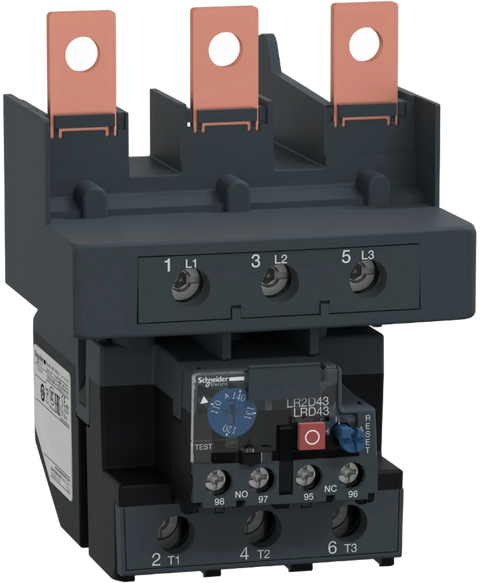

Schneider Electric LRD4369
thermal overload relays, TeSys Deca, 110...140A, class 10A, lug clamps
This Schneider Electric LRD4369 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Thermal overload relays range and is referenced internally as PartLogic SKU PL26805661429.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys LRD | TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D150 |
| Network type | DC | AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 110…140 A |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
| Mounting support | Plate, with specific accessories | Rail, with specific accessories | Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 0.06 A at 440 V DC-13 for signalling circuit | 0.12 A at 600 V AC-15 for signalling circuit |
| [Ue] rated operational voltage | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit | 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop | Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end | Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² flexible without cable end | Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals | Power circuit: 9 N.m - on screw clamp terminals |
| Depth | 132 mm |
| Net weight | 0.9 kg |
| Climatic withstand | conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength | 2.2 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | GB/T 14048.4 | GB/T 14048.5 | EN 50495 |
| Product certifications | IEC | CCC | EAC | ATEX INERIS |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.800 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 833.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.835 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 77.680 kg |
