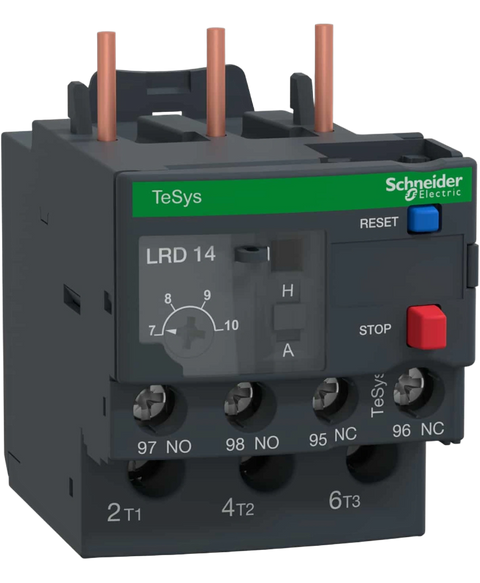

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LRD14
TeSys LRD thermal overload relays - 7...10 A - class 10A
This Schneider Electric LRD14 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Thermal overload relays range and is referenced internally as PartLogic SKU PL26805666562.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$53.85
(inc. GST)
In Stock
| Range | TeSys | TeSys Deca |
| Product name | TeSys LRD | TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D09 | LC1D12 | LC1D38 | LC1D32 | LC1D25 | LC1D18 |
| Network type | AC | DC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 7…10 A |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to CSA | Power circuit: 600 V conforming to UL | Power circuit: 690 V conforming to IEC 60947-4-1 |
| Network frequency | 0...400 Hz |
| Mounting support | Plate, with specific accessories | Rail, with specific accessories | Under contactor |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Permissible current | 3 A at 120 V AC-15 for signalling circuit | 0.22 A at 125 V DC-13 for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit | 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 |
| Control type | Red push-button: stop | Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end | Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end | Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end | Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals | Power circuit: 1.7 N.m - on screw clamp terminals |
| Height | 66 mm |
| Width | 45 mm |
| Depth | 70 mm |
| Net weight | 0.124 kg |
| Climatic withstand | conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | UL 60947-5-1 | CSA C22.2 No 60947-4-1 | CSA C22.2 No 60947-5-1 | GB/T 14048.4 | GB/T 14048.5 | EN 50495 |
| Product certifications | IEC | UL | CSA | CCC | EAC | BV | RINA | DNV-GL | LROS (Lloyds register of shipping) | ATEX INERIS | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 142.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.736 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 67.776 kg |
