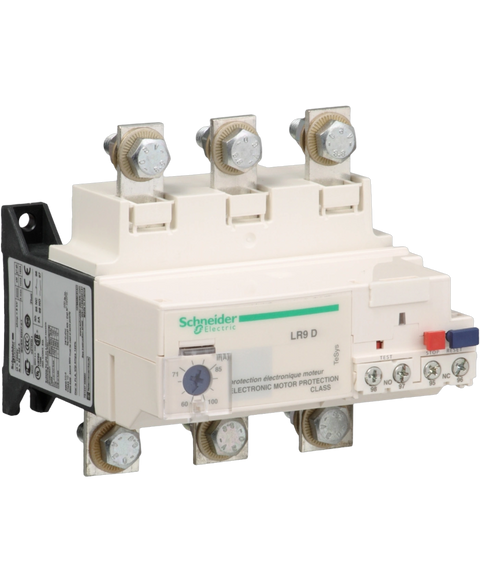

Schneider Electric LR9D5367
TeSys Deca thermal overload relays - 60...100 A - class 10
This Schneider Electric LR9D5367 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Electronic overload relays range and is referenced internally as PartLogic SKU PL26923448107.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys LRD | TeSys Deca |
| Product or component type | Electronic thermal overload relay |
| Device short name | LR9D |
| Relay application | Motor protection |
| Product compatibility | LC1D115 | LC1D150 | NSX circuit breaker |
| Network type | AC |
| Thermal overload class | Class 10 conforming to IEC 60947-4-1 |
| Signalling function | Alarm |
| Thermal protection adjustment range | 60…100 A |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 | Power circuit: 600 V conforming to CSA | Power circuit: 600 V conforming to UL |
| Network frequency | 50...60 Hz |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 17…32 V |
| Mounting support | Under contactor | Rail |
| Tripping threshold | 1.05 +/- 0.06 In alarm conforming to IEC 60947-4-1 | 1.12 +/- 0.06 In de-energisation conforming to IEC 60947-4-1 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Associated fuse rating | 4 A gG for signalling circuit | 4 A BS for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Phase failure sensitivity | Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop | Blue push-button: reset |
| Temperature compensation | -20…60 °C |
| Switching capacity in mA | 0...150 mA |
| Maximum voltage drop | <2.5 V closed state |
| Connections - terminals | Power circuit: bars | Control circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 0.5…1.5 mm² flexible without cable end | Alarm circuit: screw clamp terminals 1 cable(s) 0.5…1.5 mm² flexible without cable end |
| Tightening torque | Alarm circuit: 0.45 N.m - on screw clamp terminals | Power circuit: 18 N.m - on bars M8 | Control circuit: 1.2 N.m - on screw clamp terminals |
| Height | 118 mm |
| Width | 115 mm |
| Depth | 125 mm |
| Net weight | 0.885 kg |
| Climatic withstand | conforming to IACS E10 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 |
| Ambient air temperature for storage | -60…70 °C |
| Operating altitude | <= 2000 m without derating |
| Mechanical robustness | Vibrations: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 | Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | UL 60947-5-1 | CSA C22.2 No 60947-4-1 | CSA C22.2 No 60947-5-1 | GB/T 14048.4 | GB/T 14048.5 |
| Product certifications | UL | CSA | CCC | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 16.0 cm |
| Package 1 Length | 13.0 cm |
| Package 1 Weight | 934.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 11.978 kg |
