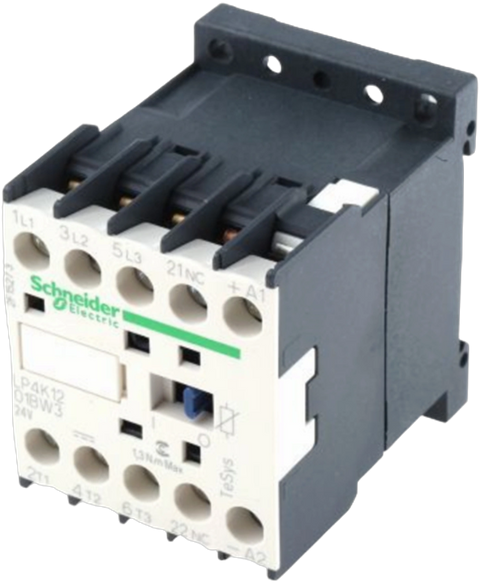

Schneider Electric LP4K1201BW3
TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NC aux. - 24 V DC coil
This Schneider Electric LP4K1201BW3 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801410771.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 12 A |
| Depth | 57 mm |
| Length | 58 mm |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Number of Poles | 3 |
| Operating Supply Voltage | 690 V |
| Power Rating | 5.5 kW |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 3P |
| Width | 45 mm |
