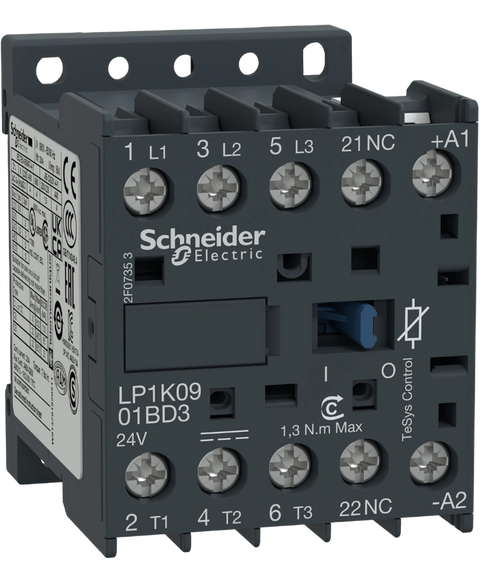

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LP1K0901BD3
TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NC aux. - 24 V DC coil
This Schneider Electric LP1K0901BD3 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26899329243.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$90.71
(inc. GST)
In Stock
| Range | TeSys |
| Product or component type | Contactor |
| Device short name | LP1K |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-3 | AC-3e | AC-1 | AC-4 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz | Signalling circuit: <= 690 V AC <= 400 Hz |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
| Control circuit type | DC standard |
| [Uc] control circuit voltage | 24 V DC |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz AC-3 | 4 kW at 380...415 V AC 50/60 Hz AC-3 | 4 kW at 440/690 V AC 50/60 Hz AC-3 | 2.2 kW at 220...230 V AC 50/60 Hz AC-3e | 4 kW at 380...415 V AC 50/60 Hz AC-3e | 4 kW at 440/690 V AC 50/60 Hz AC-3e | 2.2 kW at 220...230 V AC 50/60 Hz AC-4 | 4 kW at 380...415 V AC 50/60 Hz AC-4 | 4 kW at 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary contact composition | 1 NC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 20 A (at 60 °C) for power circuit | 10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to IEC 60947 | 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity | 110 A at 220...230 V conforming to IEC 60947 | 110 A at 380...400 V conforming to IEC 60947 | 110 A at 415 V conforming to IEC 60947 | 110 A at 440 V conforming to IEC 60947 | 80 A at 500 V conforming to IEC 60947 | 70 A at 660...690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 90 A 50 °C - 1 s for power circuit | 85 A 50 °C - 5 s for power circuit | 80 A 50 °C - 10 s for power circuit | 60 A 50 °C - 30 s for power circuit | 45 A 50 °C - 1 min for power circuit | 40 A 50 °C - 3 min for power circuit | 20 A 50 °C - >= 15 min for power circuit | 80 A - 1 s for signalling circuit | 90 A - 500 ms for signalling circuit | 110 A - 100 ms for signalling circuit |
| Associated fuse rating | 25 A gG at <= 440 V for power circuit | 25 A aM for power circuit | 10 A gG for signalling circuit conforming to IEC 60947 | 10 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to UL 508 | Power circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-5-1 | Signalling circuit: 600 V conforming to UL 508 | Power circuit: 600 V conforming to CSA C22.2 No 14 | Signalling circuit: 600 V conforming to CSA C22.2 No 14 |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Inrush power in W | 3 W (at 20 °C) |
| Hold-in power consumption in W | 3 W at 20 °C |
| Heat dissipation | 1.3 W |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at <50 °C) | Drop-out: >= 0.10 Uc (at <50 °C) |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid | Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 1.5…4 mm²solid | Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end | Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end |
| Maximum operating rate | 3600 cyc/h |
| Coil technology | With integral suppression device |
| Auxiliary contacts type | type instantaneous 1 NC |
| Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit |
| Mounting support | Rail | Plate |
| Tightening torque | 0.8…1.3 N.m - on screw clamp terminals Philips No 2 | 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm | 0.8…1.3 N.m - on screw clamp terminals pozidriv No 2 |
| Operating time | 30...40 ms coil energisation and NO closing | 10 ms coil de-energisation and NO opening |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 10 Mcycles |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V | 1.3 Mcycles 9 A AC-3e at Ue <= 440 V | 0.16 Mcycles 20 A AC-1 at Ue <= 690 V | 0.02 Mcycles 54 A AC-4 at Ue <= 440 V |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| Net weight | 0.225 kg |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | UL 60947-5-1 | CSA C22.2 No 60947-4-1 | CSA C22.2 No 60947-5-1 | GB/T 14048.4 |
| Product certifications | CB Scheme | CCC | UL | CSA | EAC | CE | UKCA |
| IP degree of protection | IP2X |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -50…80 °C |
| Operating altitude | 2000 m without derating |
| Flame retardance | V1 conforming to UL 94 | Requirement 2 conforming to NF F 16-101 | Requirement 2 conforming to NF F 16-102 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 225.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.248 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 155.968 kg |
