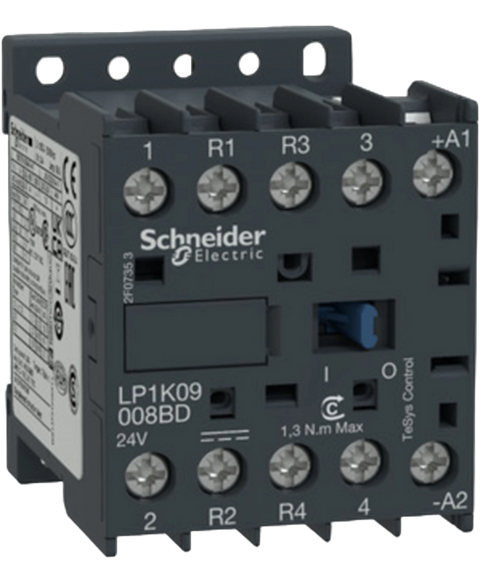

Schneider Electric LP1K09008BD
TeSys K contactor - 4P (2 NO + 2 NC) - AC-1 <= 440 V 20 A - 24 V DC coil
This Schneider Electric LP1K09008BD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26897301106.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Voltage (DC) | 24 V |
| Contact Current Rating | 20 A |
| Depth | 56.8 mm |
| Length | 57.91 mm |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Number of Poles | 4 |
| Operating Supply Voltage | 690 V |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Screw |
| Width | 44.958 mm |
